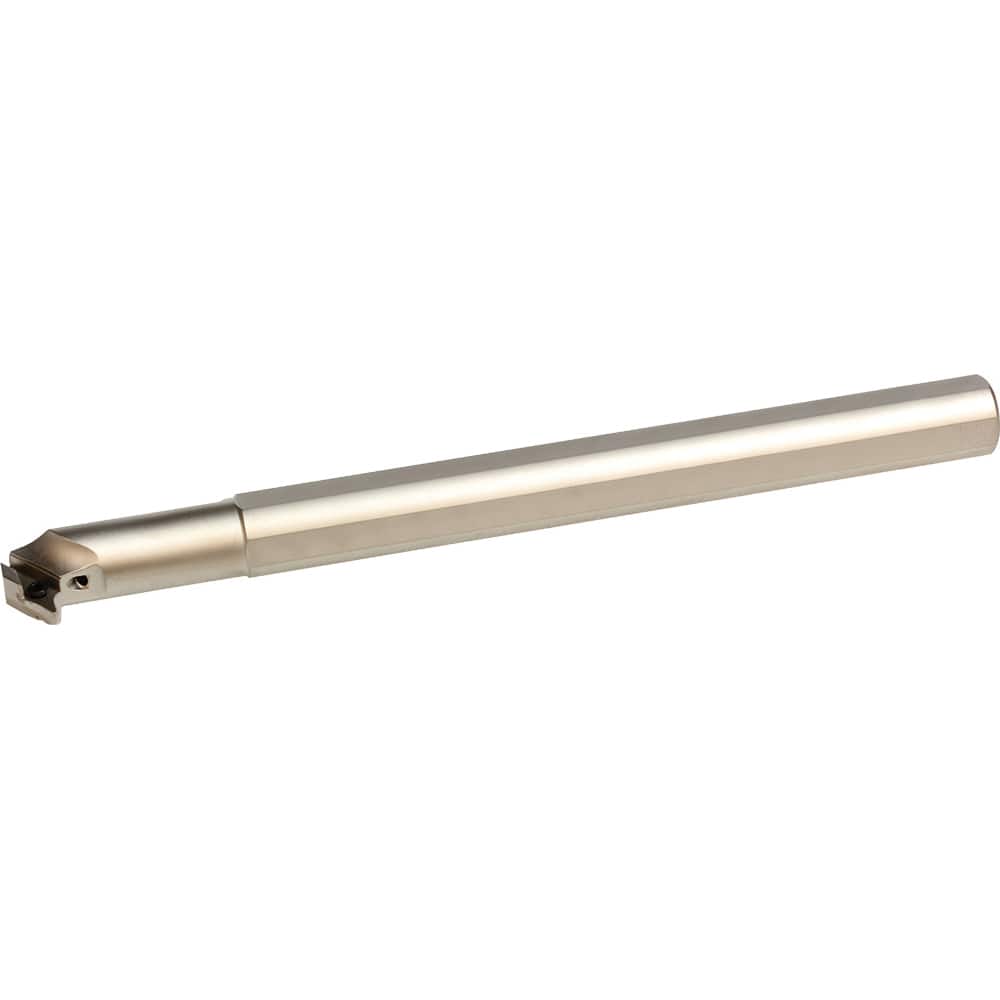

Kyocera - 24.89mm Min Bore, 40.5mm Max Depth, Right Hand A...SVZB Indexable Boring Bar
Item #: 28485076
Brand: Kyocera
Model #: 8826562
Product Specifications
| Toolholder Style | A...SVZB |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 24.890 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 40.50 |
| Overall Length (mm) | 254.0000 |
| Shank Diameter (Inch) | 0.75 |
| Insert Compatibility | VBMT22?; VBGT22?; VBET22?; VBGW22? |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 18.00 |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | -7 (Radial);0 (Axial) |
| Coolant Hole Diameter (mm) | 5.00 |
| Toolholder Material | Steel |
