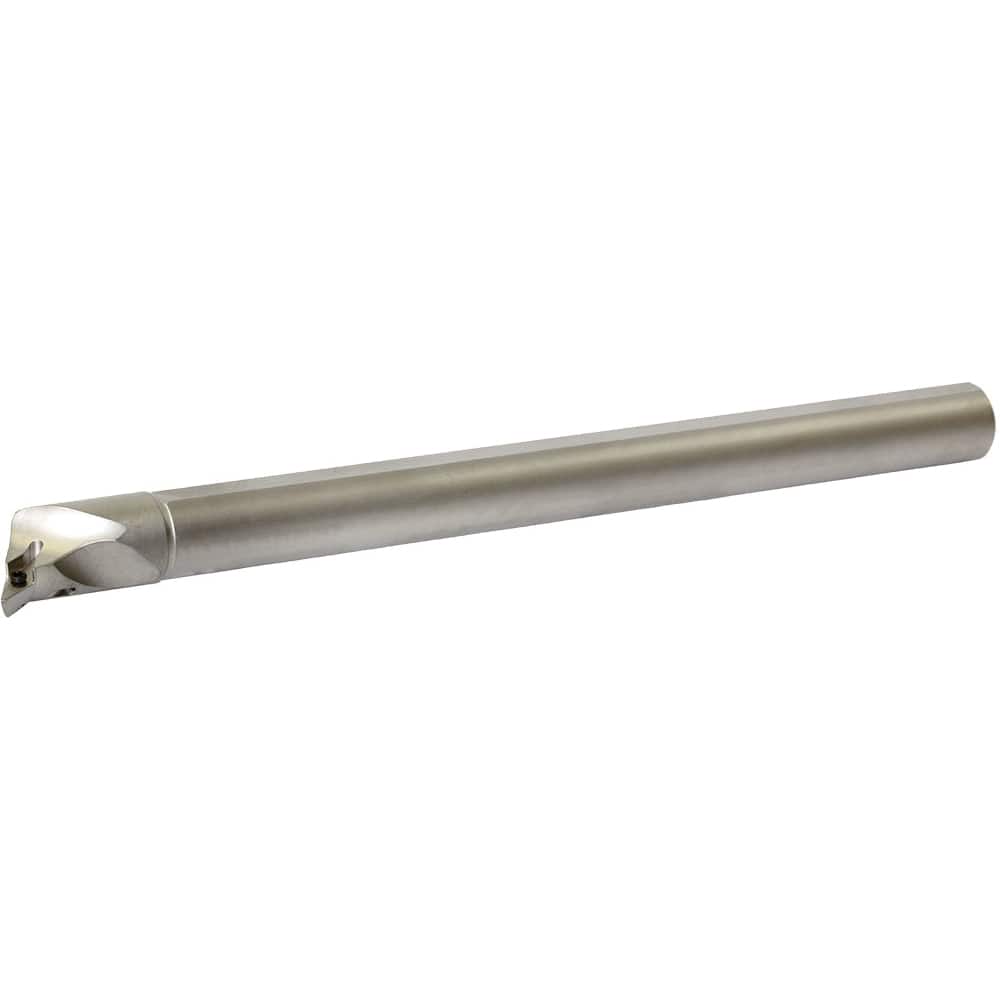

Kyocera - 18mm Min Bore, 29mm Max Depth, Right Hand A...SVPB Indexable Boring Bar
Item #: 28485100
Brand: Kyocera
Model #: 8827404
Product Specifications
| Toolholder Style | A...SVPB |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 18.000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 29.00 |
| Overall Length (mm) | 150.0000 |
| Shank Diameter (mm) | 12.0000 |
| Insert Compatibility | VBMT22?; VBGT22?; VBET22?; VBGW22? |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; Undercutting |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 117.5 |
| Center to Cutting Edge (mm) | 11.00 |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | -5 (Axial);-8 (Radial) |
| Coolant Hole Diameter (mm) | 4.00 |
| Toolholder Material | Steel |
