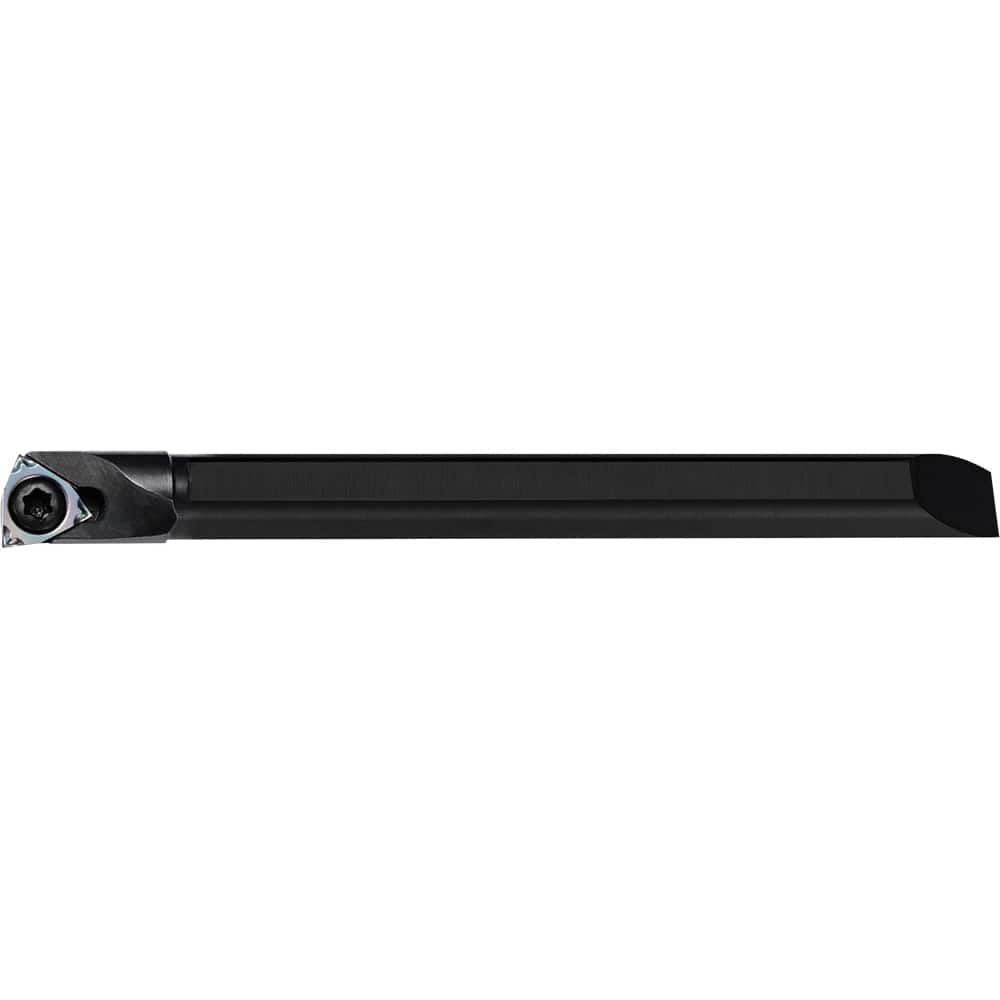

Kyocera - 8mm Min Bore, 11mm Max Depth, Right Hand C...SWUB Indexable Boring Bar
Item #: 28485142
Brand: Kyocera
Model #: 8860001
Product Specifications
| Toolholder Style | C...SWUB |
| Series | EZB |
| Minimum Bore Diameter (mm) | 8.000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 11.00 |
| Overall Length (Decimal Inch) | 2.92910 |
| Shank Diameter (mm) | 7.0000 |
| Insert Compatibility | WBGT1515?; WBMT1515?; WBET1515?; WBGW1515? |
| Through Coolant | No |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 4.00 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Rake Angle | -15 (Radial);0 (Axial) |
| Toolholder Material | Steel; Carbide |
