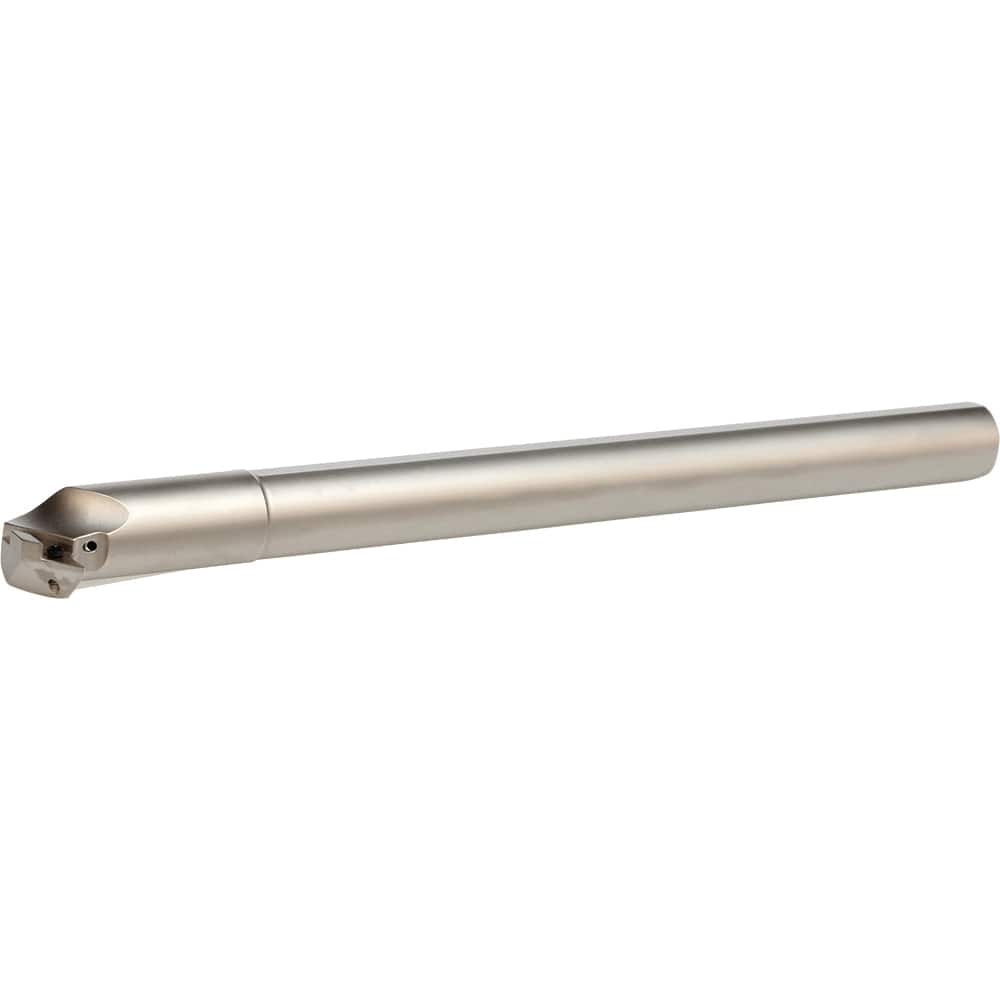

Kyocera - 34.04mm Min Bore, 30mm Max Depth, Right Hand A...SVZB Indexable Boring Bar
Item #: 28485159
Brand: Kyocera
Model #: 8609338
Product Specifications
| Toolholder Style | A...SVZB |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 34.040 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 30.00 |
| Overall Length (Inch) | 12 |
| Shank Diameter (Inch) | 1 |
| Insert Compatibility | VBMT33?; VBGT33?; VBGW33... VCGT33? |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 20.50 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | -13 (Radial);0 (Axial) |
| Coolant Hole Diameter (mm) | 5.00 |
| Toolholder Material | Steel |
