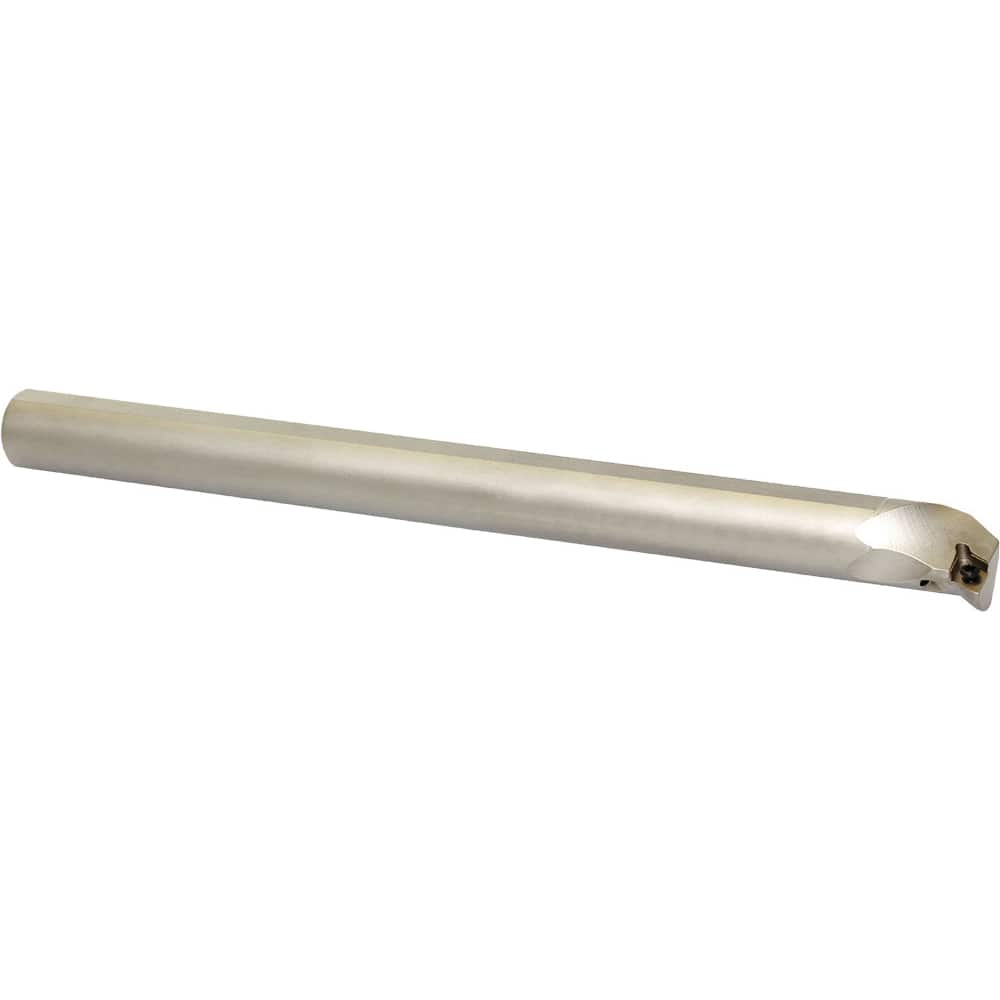

Kyocera - 16mm Min Bore, 22mm Max Depth, Left Hand A...SDQC Indexable Boring Bar
Item #: 28485167
Brand: Kyocera
Model #: 8826595
Product Specifications
| Toolholder Style | A...SDQC |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 16.000 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 22.00 |
| Overall Length (Inch) | 6 |
| Shank Diameter (Inch) | 0.5 |
| Insert Compatibility | DCGT215?; DCMX215?; DCMT215?; DCET215?; DCMW215? |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 107.5 |
| Center to Cutting Edge (mm) | 9.25 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | -8 (Radial);0 (Axial) |
| Coolant Hole Diameter (mm) | 4.00 |
| Toolholder Material | Steel |
