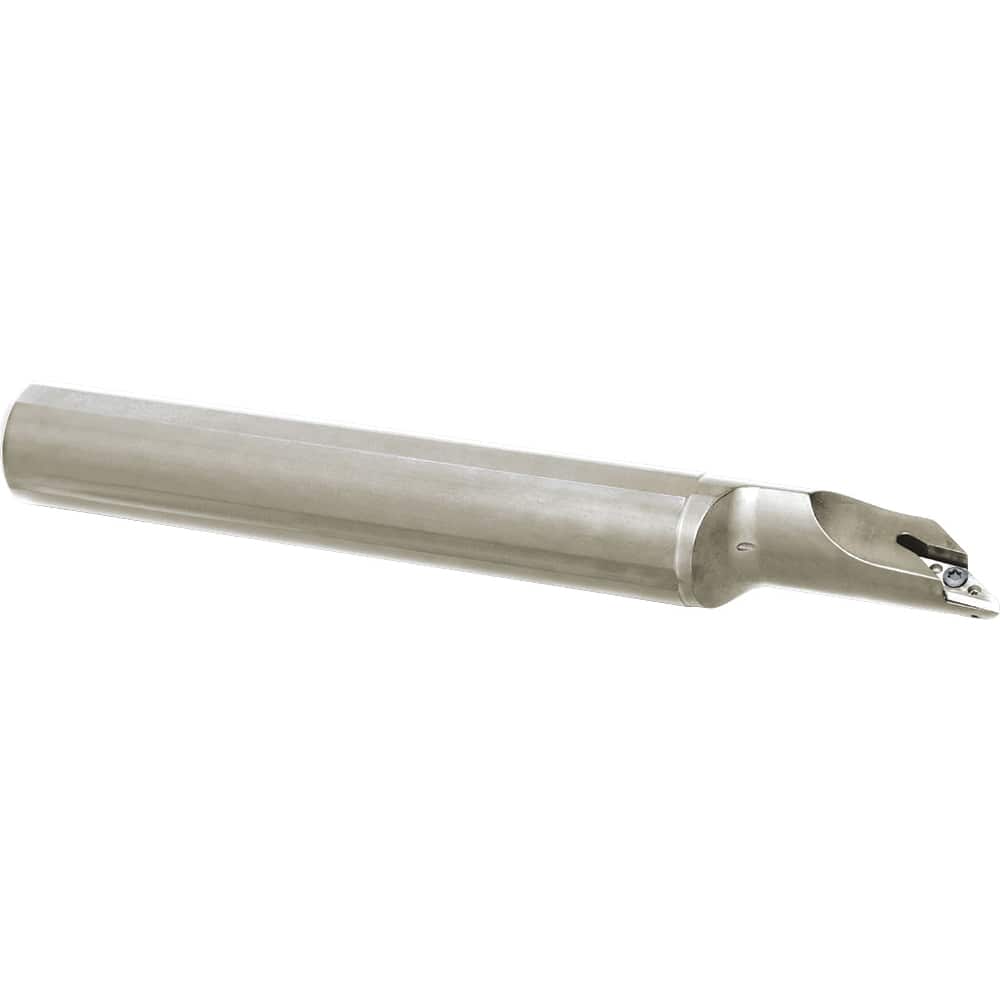

Kyocera - 40mm Min Bore, 74mm Max Depth, Left Hand A...SVJB Indexable Boring Bar
Item #: 28485282
Brand: Kyocera
Model #: 8827399
Product Specifications
| Toolholder Style | A...SVJB |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 40.000 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 74.00 |
| Overall Length (mm) | 250.0000 |
| Shank Diameter (mm) | 32.0000 |
| Insert Compatibility | VBMT33?; VBGT33?; VBGW33... VCGT33? |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; Internal Facing; Internal Spherical Machining |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 52 |
| Center to Cutting Edge (mm) | 3.50 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | -5 (Axial);-8 (Radial) |
| Coolant Hole Diameter (mm) | 7.00 |
| Toolholder Material | Steel |
