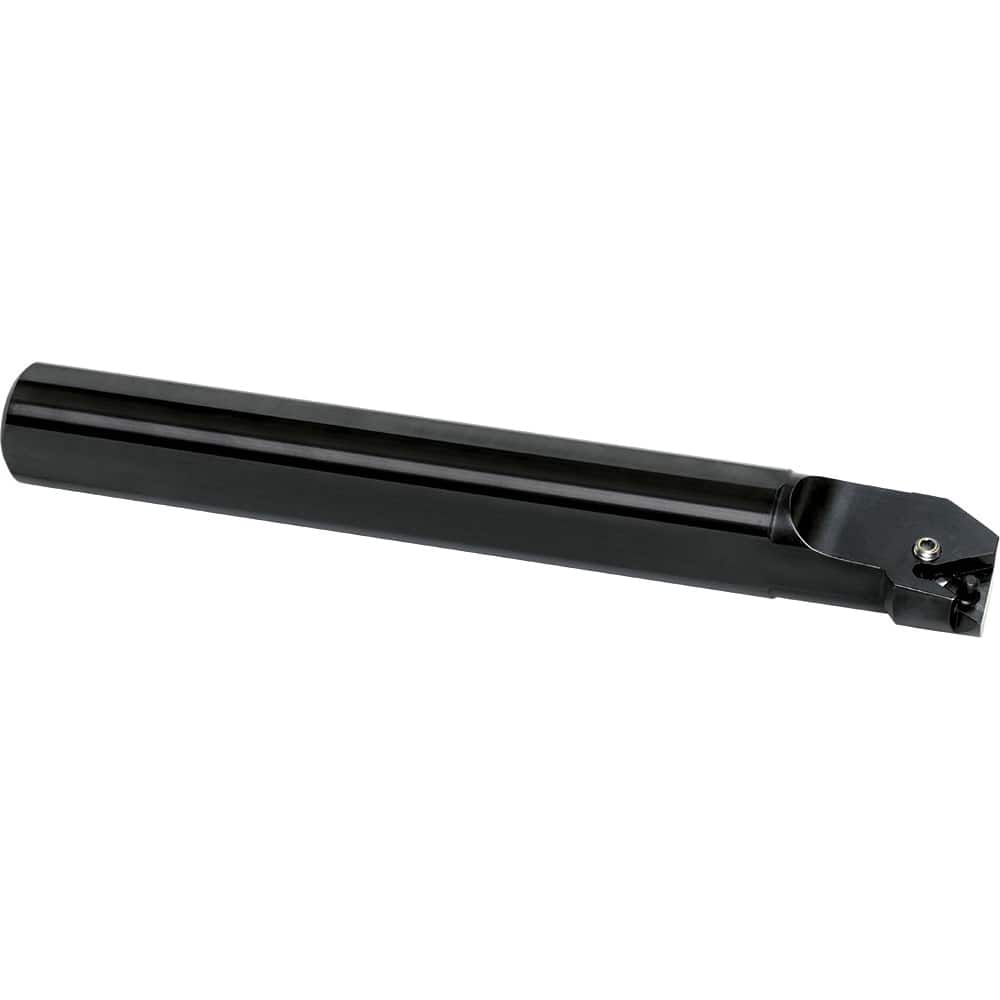

Kyocera - 20mm Min Bore, 34mm Max Depth, Left Hand S...PTUN16 Indexable Boring Bar
Item #: 28485324
Brand: Kyocera
Model #: 8842576
Product Specifications
| Toolholder Style | S...PTUN16 |
| Series | GPBB |
| Minimum Bore Diameter (mm) | 20.000 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 34.00 |
| Overall Length (mm) | 150.0000 |
| Shank Diameter (mm) | 16.0000 |
| Insert Compatibility | TNMG33?; TNGG33?; TNGA33?; TNMM33? |
| Through Coolant | No |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Lever Lock; Lock Pin |
| Rake | Negative |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 11.00 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | -6 (Axial);-18 (Radial) |
| Toolholder Material | Steel |
