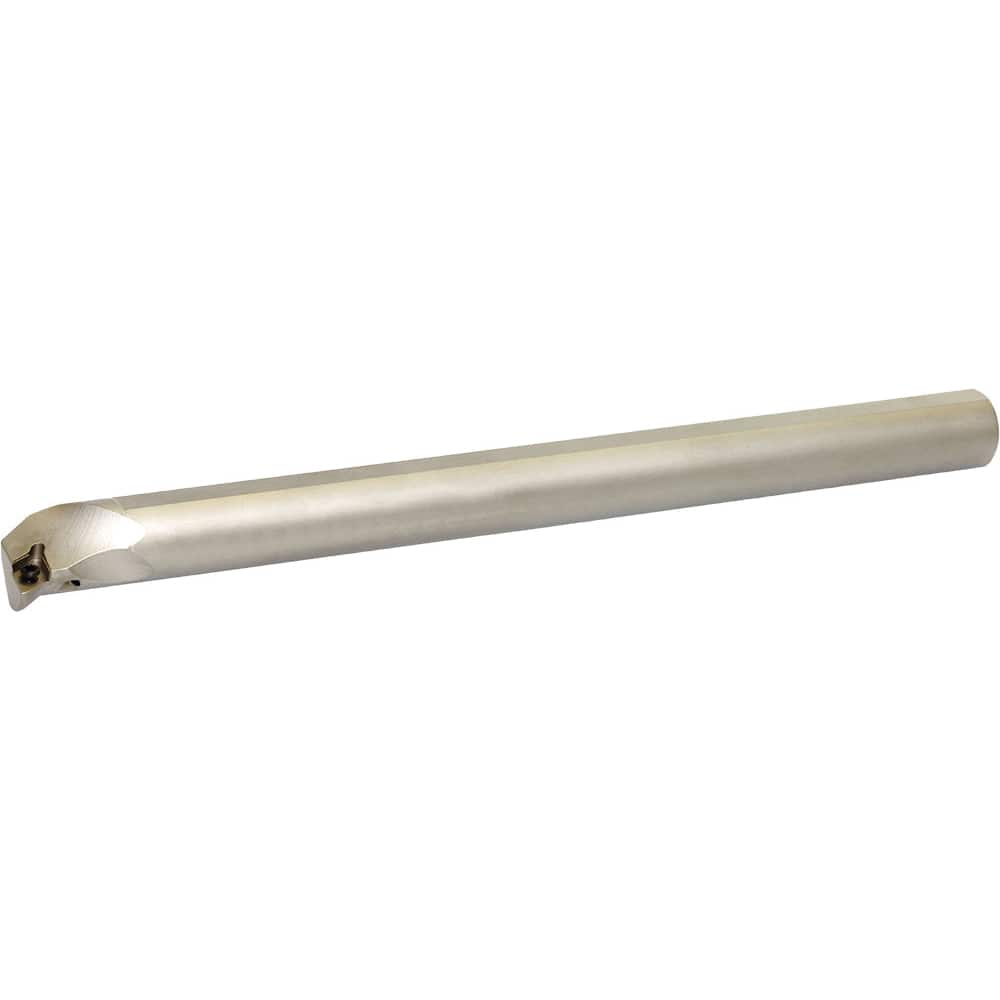

Kyocera - 19.99mm Min Bore, 25mm Max Depth, Right Hand A...SDQC Indexable Boring Bar
Item #: 28485373
Brand: Kyocera
Model #: 8609006
Product Specifications
| Toolholder Style | A...SDQC |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 19.990 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 25.00 |
| Overall Length (Inch) | 8 |
| Shank Diameter (Inch) | 0.625 |
| Insert Compatibility | DCGT215?; DCMX215?; DCMT215?; DCET215?; DCMW215? |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 107.5 |
| Center to Cutting Edge (mm) | 11.25 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | -6 (Radial), 0 (Axial) |
| Coolant Hole Diameter (mm) | 5.00 |
| Toolholder Material | Steel |
