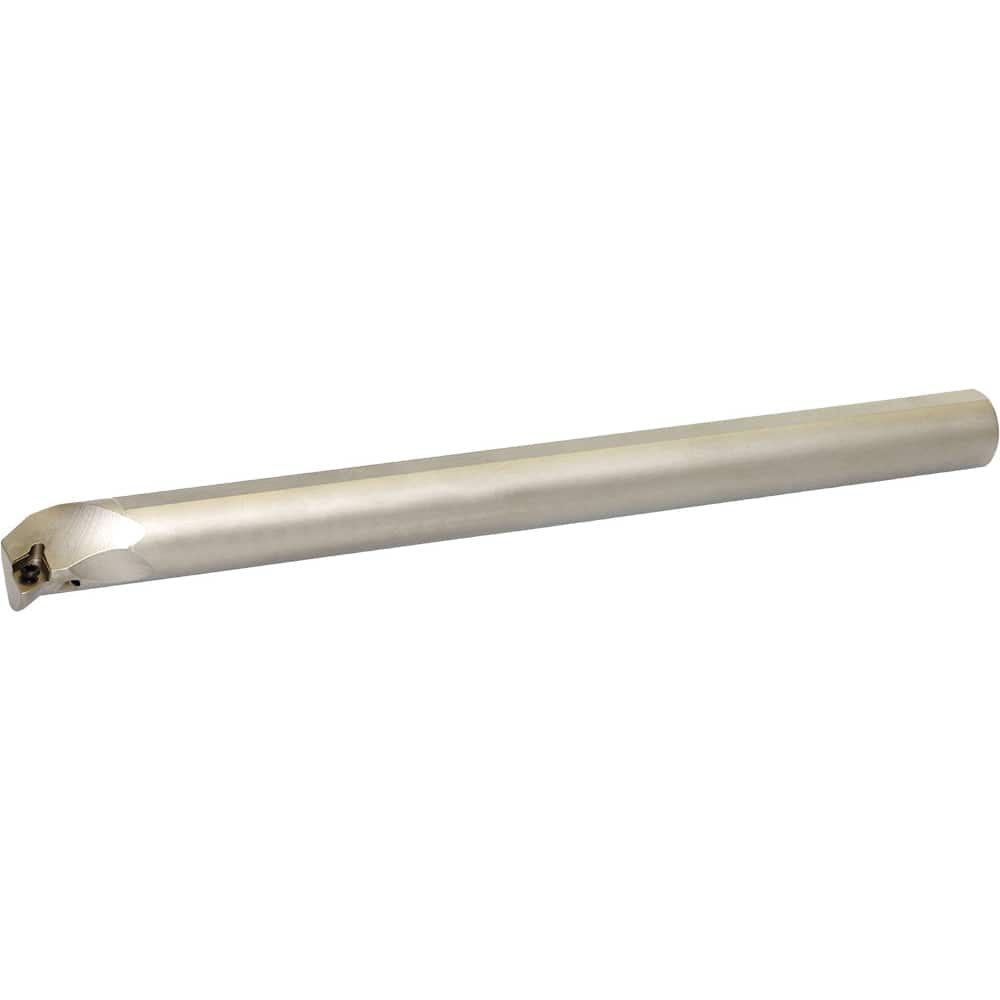

Kyocera - 27mm Min Bore, 22mm Max Depth, Right Hand A...SDUC Indexable Boring Bar
Item #: 28485407
Brand: Kyocera
Model #: 8826498
Product Specifications
| Toolholder Style | A...SDUC |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 27.000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 22.00 |
| Overall Length (mm) | 254.0000 |
| Shank Diameter (Inch) | 0.75 |
| Insert Compatibility | DCGT325?; DCMX325?; DCMT325?; DCET325?; DCMW325? |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 16.51 |
| Insert Thickness (Inch) | 5/32 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 3 (Axial);-5 (Radial) |
| Coolant Hole Diameter (mm) | 5.00 |
| Toolholder Material | Steel |
