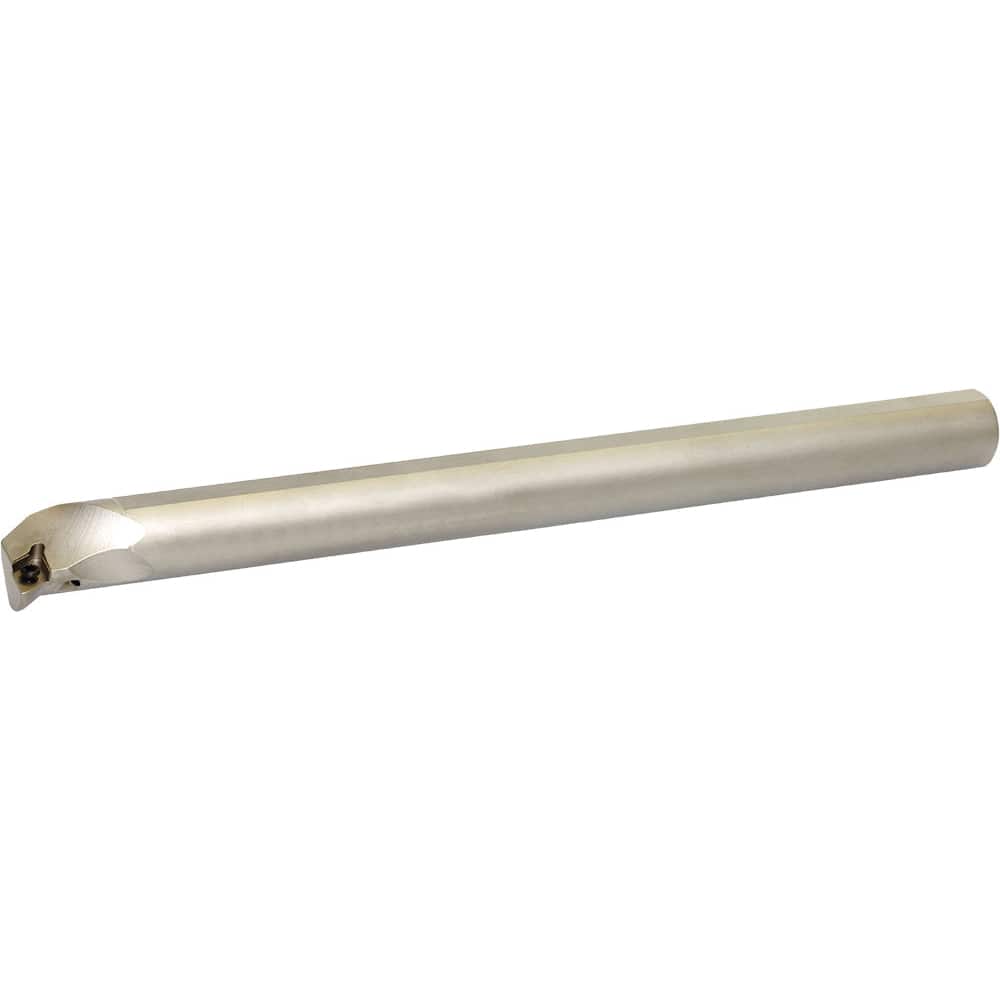

Kyocera - 20mm Min Bore, 21mm Max Depth, Right Hand A...SDUC Indexable Boring Bar
Item #: 28485415
Brand: Kyocera
Model #: 8827340
Product Specifications
| Toolholder Style | A...SDUC |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 20.000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 21.00 |
| Overall Length (mm) | 180.0000 |
| Shank Diameter (mm) | 16.0000 |
| Insert Compatibility | DCGT215?; DCMX215?; DCMT215?; DCET215?; DCMW215? |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 11.70 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | 3 (Axial);-5 (Radial) |
| Coolant Hole Diameter (mm) | 5.00 |
| Toolholder Material | Steel |
