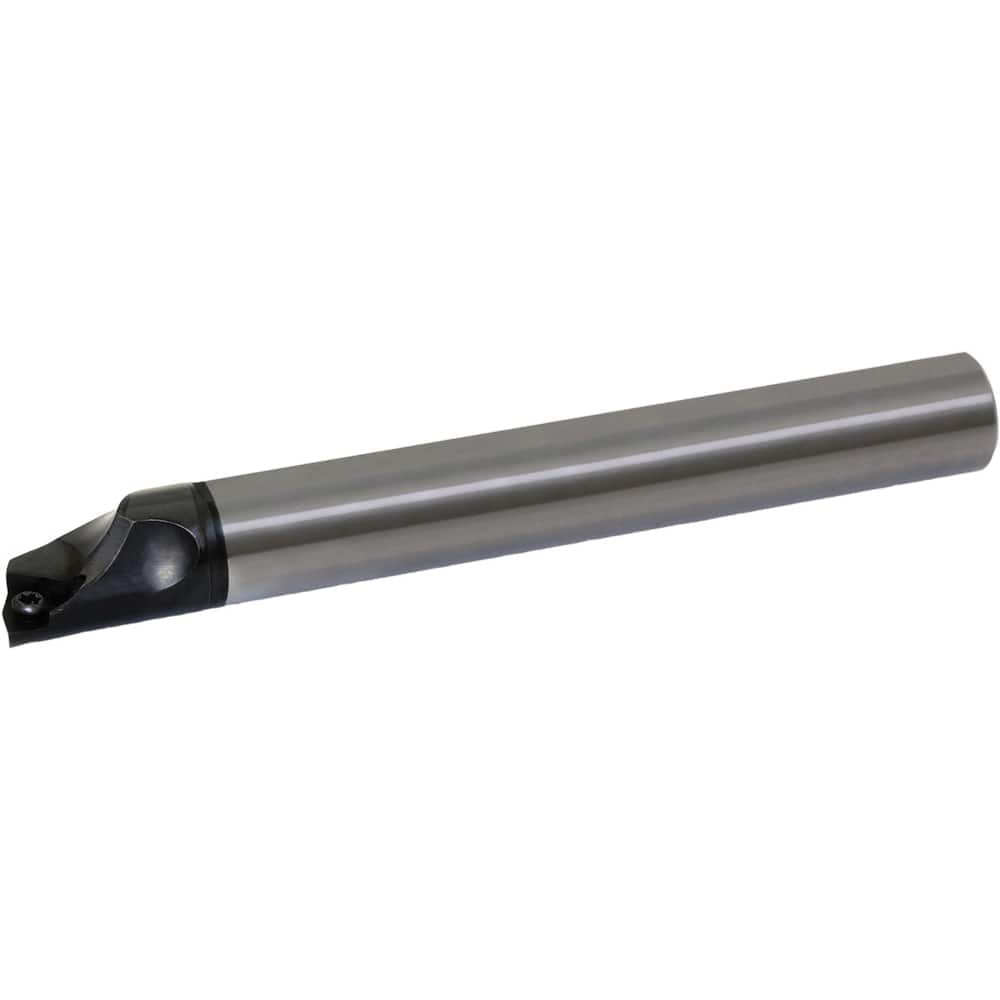

Kyocera - 10mm Min Bore, 14mm Max Depth, Right Hand E...SWUB Indexable Boring Bar
Item #: 28485472
Brand: Kyocera
Model #: 8846019
Product Specifications
| Toolholder Style | E...SWUB |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 10.000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 14.00 |
| Overall Length (mm) | 140.0000 |
| Shank Diameter (mm) | 8.0000 |
| Insert Compatibility | WBMT1515?; WBGT1515?; WBET1515?; WBGW1515? |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 5.00 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Rake Angle | 5 (Axial);-13 (Radial) |
| Coolant Hole Diameter (mm) | 3.00 |
| Toolholder Material | Steel; Carbide |
