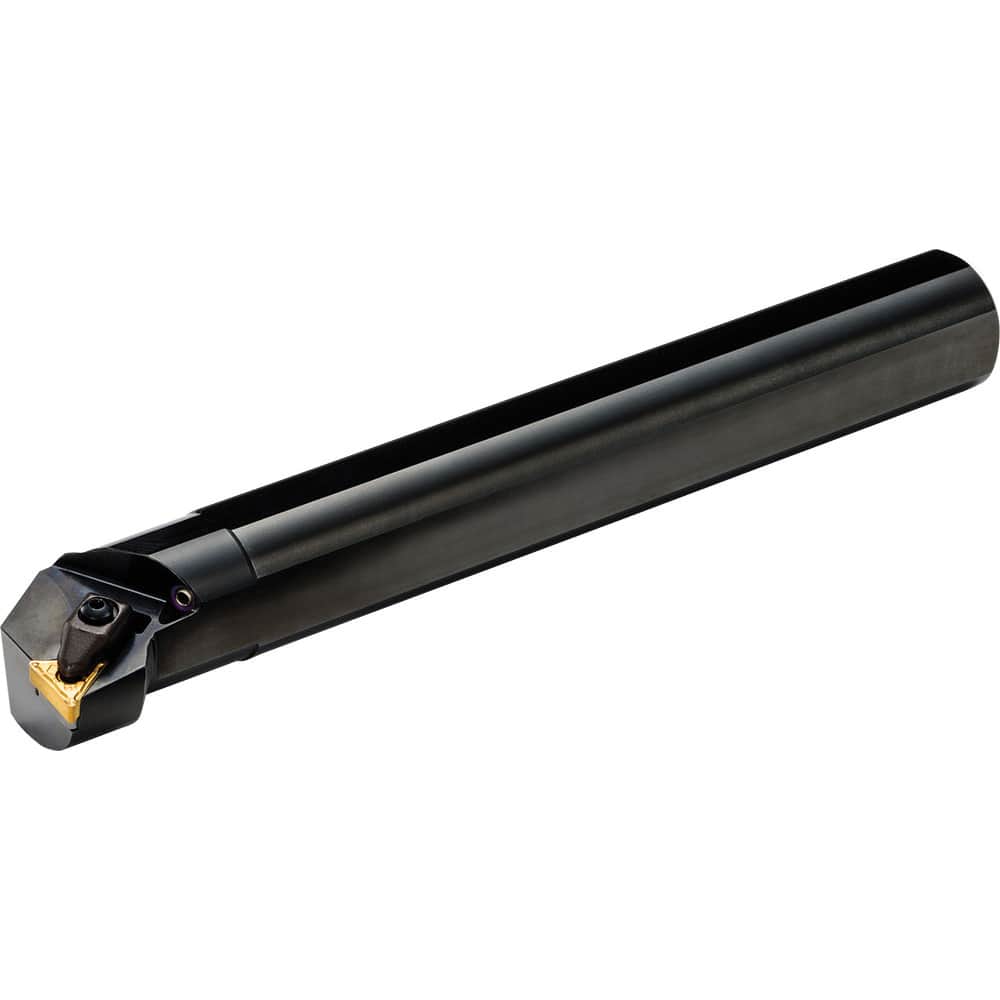

Kyocera - 40mm Min Bore, 50mm Max Depth, Right Hand A...DTFN Indexable Boring Bar
Item #: 28485555
Brand: Kyocera
Model #: 8842109
Product Specifications
| Toolholder Style | A...DTFN |
| Series | DBCB |
| Minimum Bore Diameter (mm) | 40.000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 50.00 |
| Overall Length (mm) | 250.0000 |
| Shank Diameter (mm) | 32.0000 |
| Insert Compatibility | TNMG33?; TNMX33?; TNGG33?; TNGA33?; TNMM33? |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Double Clamp |
| Rake | Negative |
| Lead Angle | 91 |
| Center to Cutting Edge (mm) | 22.00 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | -6 (Axial);-12 (Radial) |
| Coolant Hole Thread Size (Inch) | 1/8 Rc |
| Toolholder Material | Steel |
