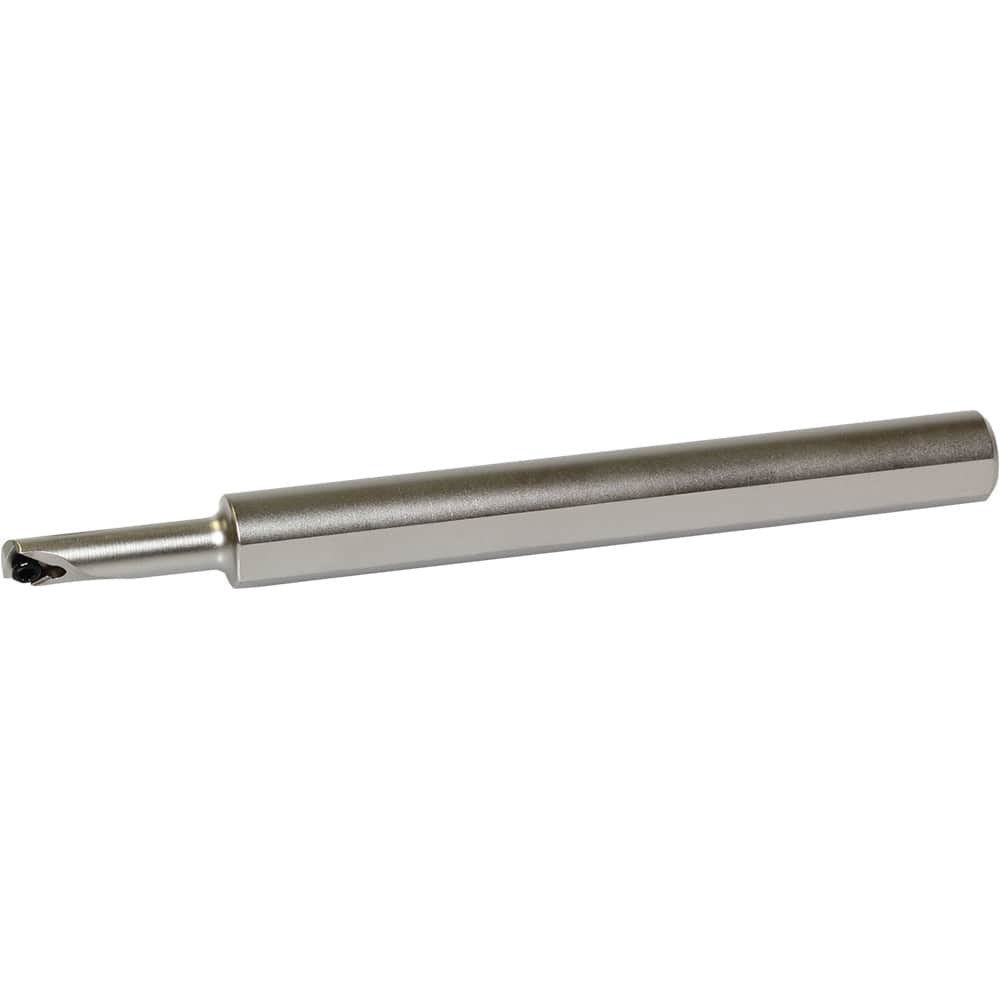

Kyocera - 6mm Min Bore, 21mm Max Depth, Right Hand S...SWUB Indexable Boring Bar
Item #: 28485563
Brand: Kyocera
Model #: 8829117
Product Specifications
| Toolholder Style | S...SWUB |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 6.000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 21.00 |
| Overall Length (mm) | 100.0000 |
| Shank Diameter (mm) | 10.0000 |
| Insert Compatibility | WBMT121?; WBGT121?; WBGW121? |
| Through Coolant | No |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 3.00 |
| Insert Thickness (Inch) | 1/16 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Rake Angle | -15 (Radial);0 (Axial) |
| Toolholder Material | Steel |
