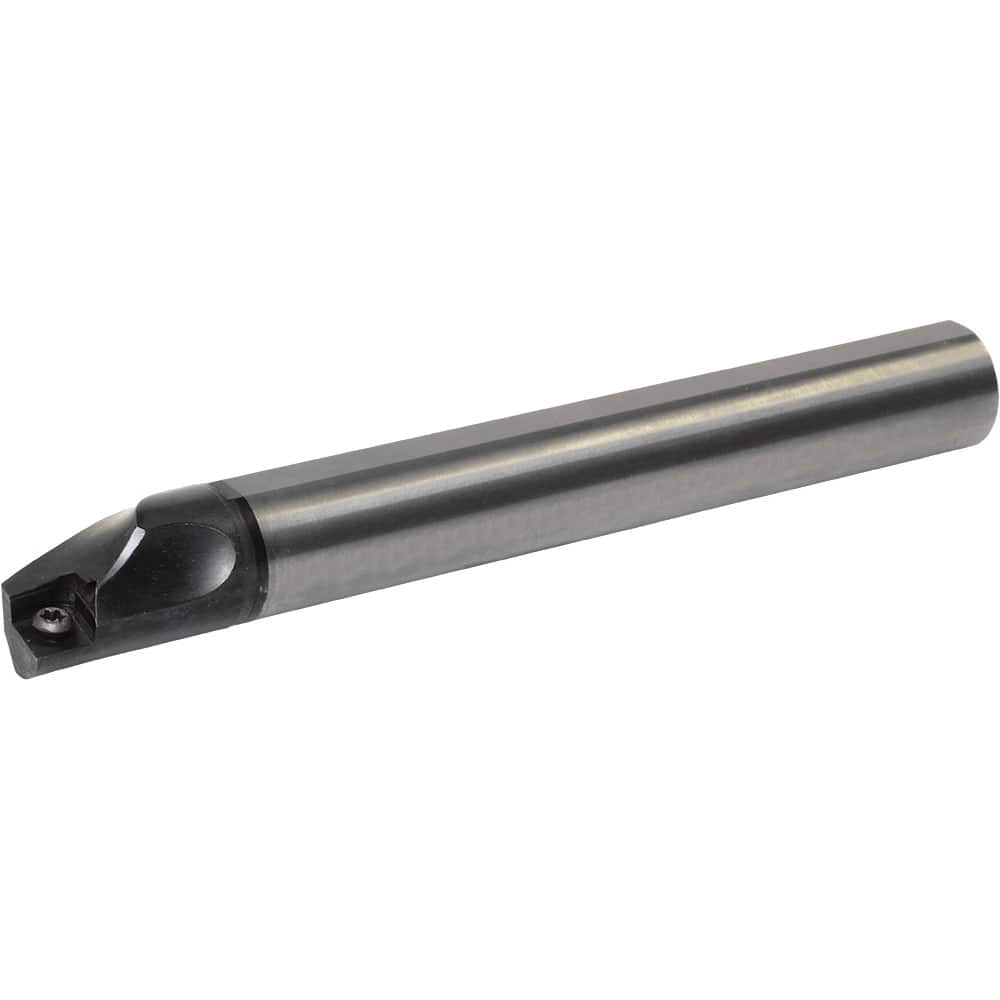

Kyocera - 18mm Min Bore, 28mm Max Depth, Right Hand E...SCLP Indexable Boring Bar
Item #: 28485605
Brand: Kyocera
Model #: 8828696
Product Specifications
| Toolholder Style | E...SCLP |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 18.000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 28.00 |
| Overall Length (mm) | 220.0000 |
| Shank Diameter (mm) | 16.0000 |
| Insert Compatibility | CPMT32?; CPMH32?; CPMB32?; CPGB32? |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 9.00 |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | -3.5 (Radial);5 (Axial) |
| Coolant Hole Diameter (mm) | 4.00 |
| Toolholder Material | Steel; Carbide |
