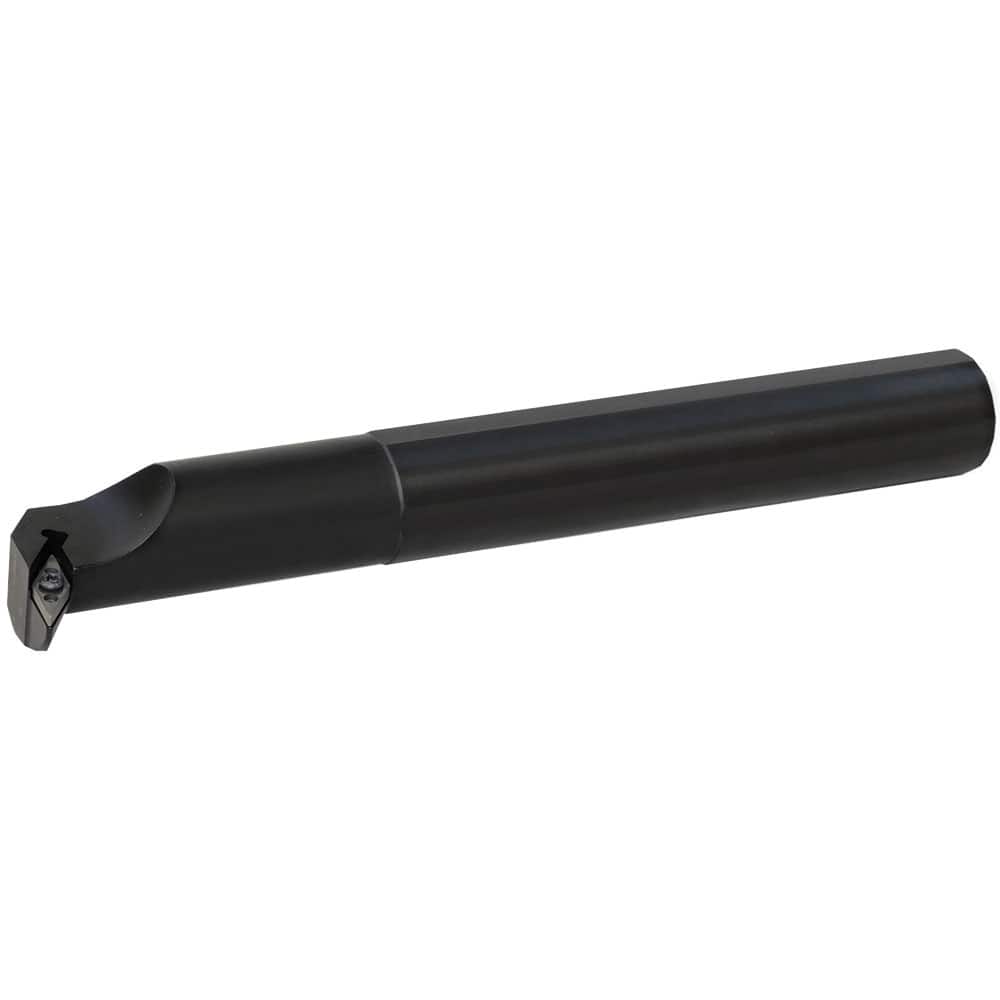

Kyocera - 16mm Min Bore, 27.94mm Max Depth, Right Hand S...SVUC Indexable Boring Bar
Item #: 28485704
Brand: Kyocera
Model #: 8608686
Product Specifications
| Toolholder Style | S...SVUC |
| Series | GPBB |
| Minimum Bore Diameter (mm) | 16.000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 27.94 |
| Overall Length (Inch) | 6 |
| Shank Diameter (Inch) | 0.5 |
| Insert Compatibility | VCMT1515?; VCGW1515? |
| Through Coolant | No |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 11.00 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Rake Angle | -8 (Radial);0 (Axial) |
| Toolholder Material | Steel |
