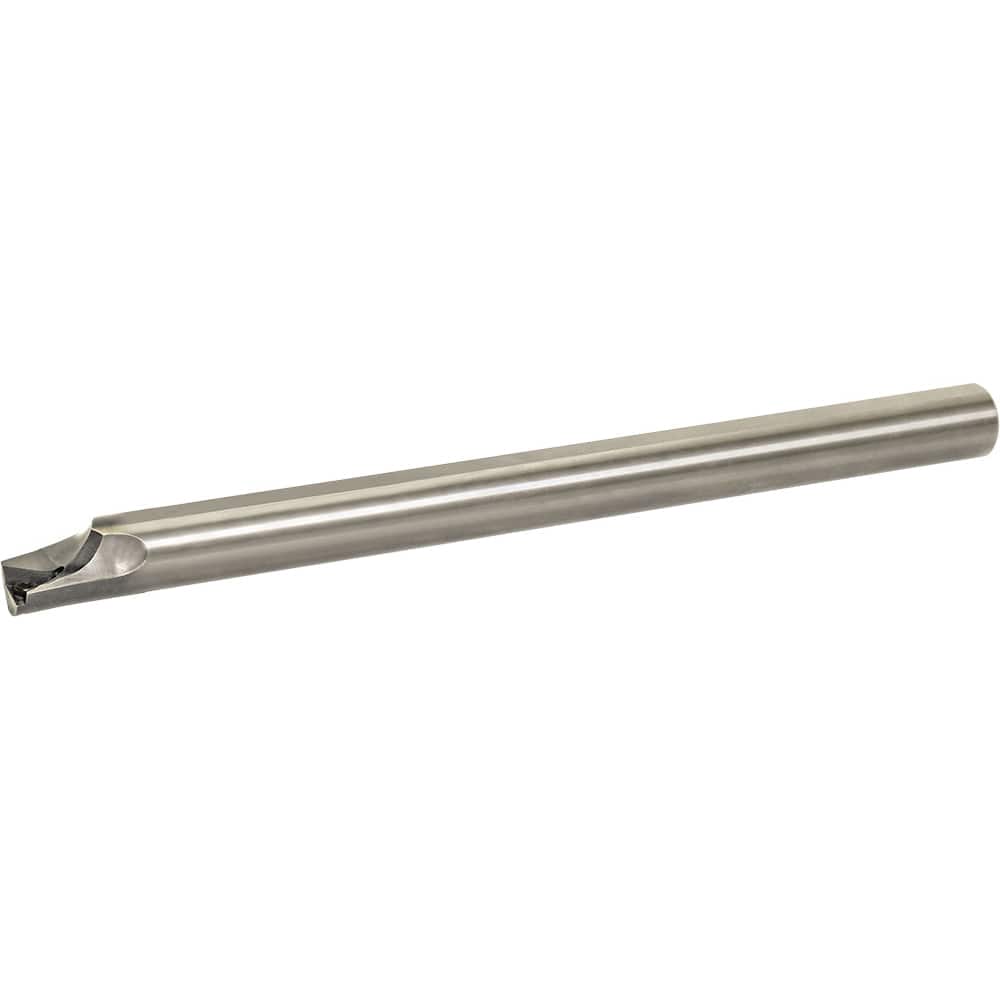

Kyocera - 10mm Min Bore, 16mm Max Depth, Right Hand A...STLP Indexable Boring Bar
Item #: 28485811
Brand: Kyocera
Model #: 8838746
Product Specifications
| Toolholder Style | A...STLP |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 10.000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 16.00 |
| Overall Length (mm) | 120.0000 |
| Shank Diameter (mm) | 8.0000 |
| Insert Compatibility | TPGT1515?; TPGH1515?; TPET1515?; TPGB1515?; TPMH1515? |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 5.00 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Rake Angle | -10 (Radial);5 (Axial) |
| Coolant Hole Diameter (mm) | 2.50 |
| Toolholder Material | Steel |
