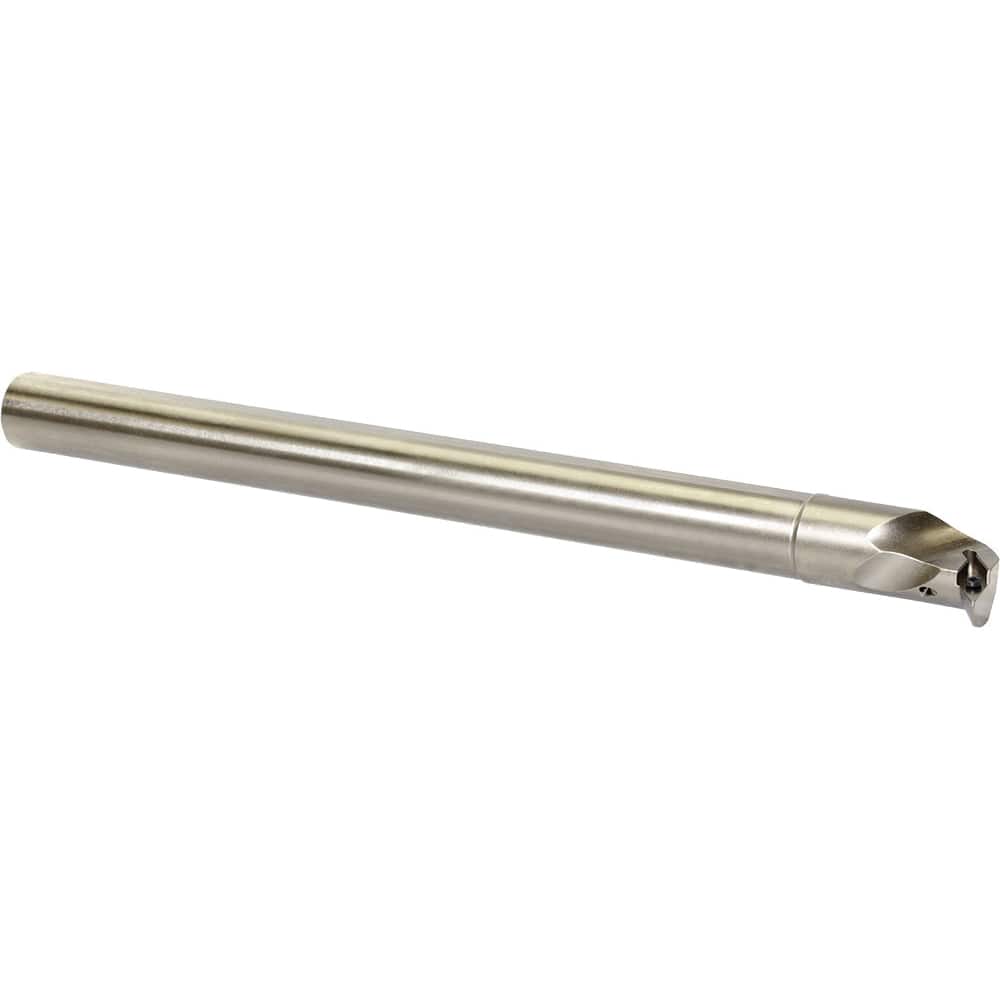

Kyocera - 16mm Min Bore, 1" Max Depth, Left Hand A...SVUC Indexable Boring Bar
Item #: 28485837
Brand: Kyocera
Model #: 8826605
Product Specifications
| Toolholder Style | A...SVUC |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 16.000 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (Inch) | 1 |
| Overall Length (Inch) | 6 |
| Shank Diameter (Inch) | 0.5 |
| Insert Compatibility | VCMT1515?; VCGW1515? |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 11.50 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Rake Angle | -8 (Radial);0 (Axial) |
| Coolant Hole Diameter (mm) | 4.00 |
| Toolholder Material | Steel |
