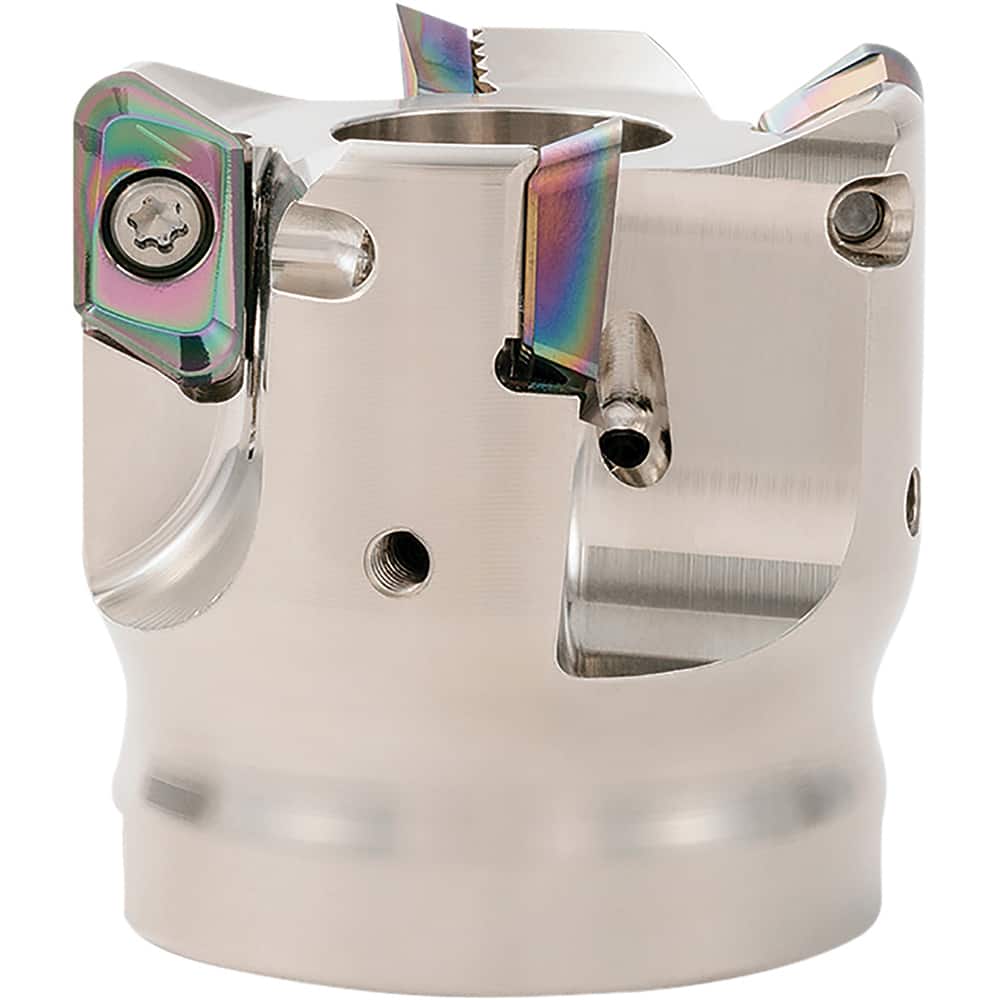

Kyocera - Indexable Chamfer & Angle Face Mills; Cutting Diameter (mm): 50.00 ; Arbor Hole Diameter (mm): 22.00 ; Lead Angle: 90 ; Overall Height (mm): 50.00 ; Insert Compatibility: KCGT?FR-AL ; Series: MEAS
Item #: 28487593
Brand: Kyocera
Model #: 8863879
Product Specifications
Indexable Chamfer & Angle Face Mills; Cutting Diameter (mm): 50.00 ; Arbor Hole Diameter (mm): 22.00 ; Lead Angle: 90 ; Overall Height (mm): 50.00 ; Insert Compatibility: KCGT?FR-AL ; Series: MEAS
| Cutting Diameter (mm) | 50.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | KCGT?FR-AL |
| Series | MEAS |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.00 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | MEAS |
| Cutting Rake Angle | +10 (Axial); -11 (Radial) |
| Keyway Width (mm) | 10.4000 |
| Maximum RPM | 36000.000 |
| Cutting Direction | Right Hand |
| Pitch | Standard |
| Toolholder Material | Steel |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 50.00 |
