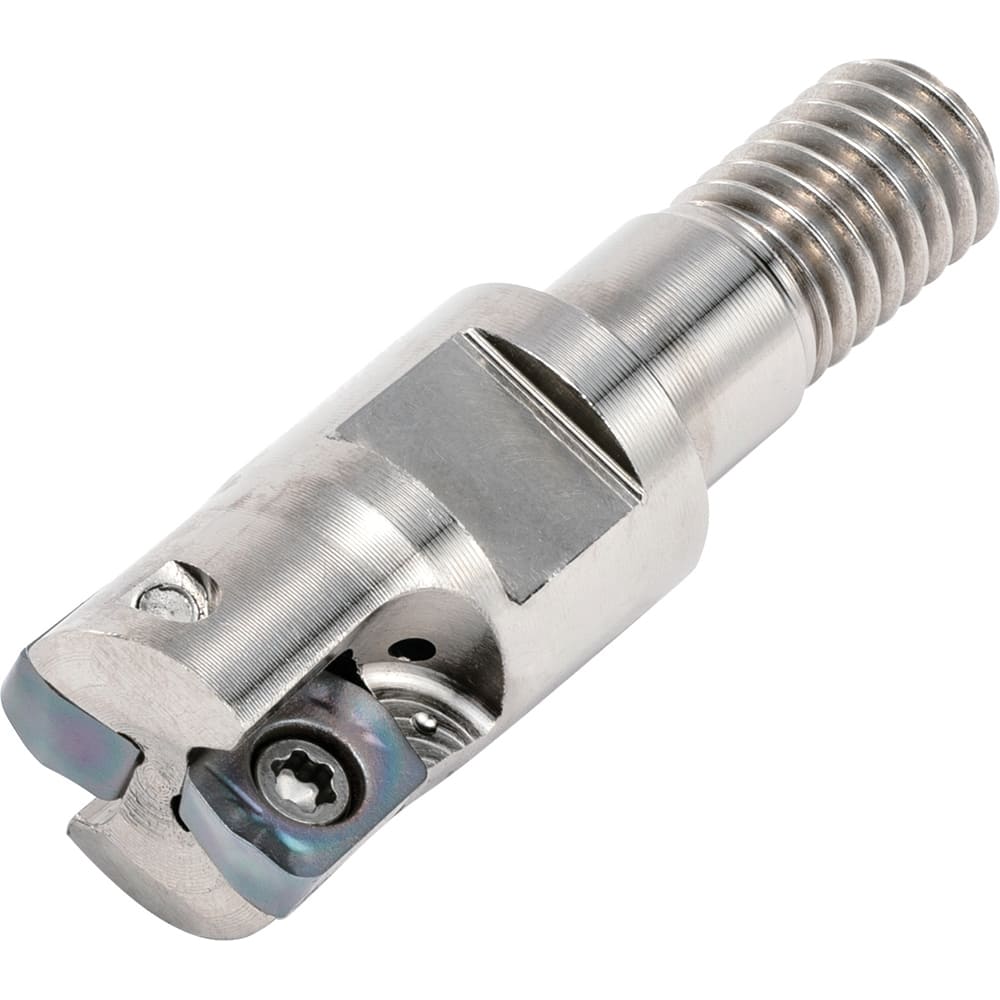

Kyocera - Indexable High-Feed End Mills; Cutting Diameter (mm): 12.07 ; Maximum Depth of Cut (mm): 0.50 ; Shank Type: Modular Connection ; Shank Diameter (mm): 8.5000 ; Number of Cutter Inserts: 4 ; Insert Style: LPGT
Item #: 28491678
Brand: Kyocera
Model #: 8849537
Product Specifications
Indexable High-Feed End Mills; Cutting Diameter (mm): 12.07 ; Maximum Depth of Cut (mm): 0.50 ; Shank Type: Modular Connection ; Shank Diameter (mm): 8.5000 ; Number of Cutter Inserts: 4 ; Insert Style: LPGT
| Cutting Diameter (mm) | 12.07 |
| Maximum Depth of Cut (mm) | 0.50 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 8.5000 |
| Number of Cutter Inserts | 4 |
| Insert Style | LPGT |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 4 |
| Maximum RPM | 11400.000 |
| Through Coolant | Through Coolant |
| Maximum Cutting Diameter (Decimal Inch) | 5/8 |
| Overall Length (mm) | 22.0000 |
| Modular Connection Thread Size | M8 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LPGT01? |
| Series | MFH |
| Manufacturers Catalog Number | MFH0625M08014T |
