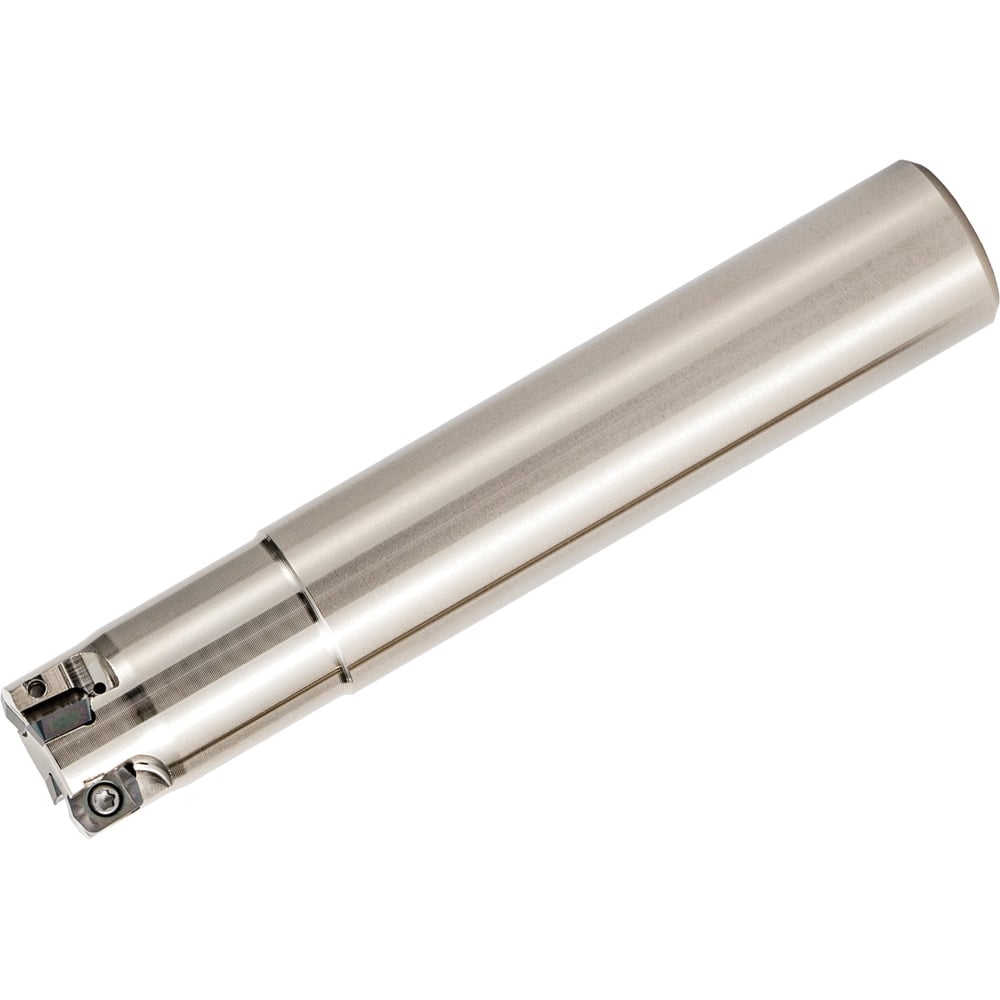

Kyocera - Indexable High-Feed End Mills; Cutting Diameter (mm): 12.20 ; Maximum Depth of Cut (mm): 0.50 ; Shank Type: Cylindrical ; Shank Diameter (mm): 16.0000 ; Number of Cutter Inserts: 4 ; Insert Style: LPGT
Item #: 28491694
Brand: Kyocera
Model #: 8847277
Product Specifications
Indexable High-Feed End Mills; Cutting Diameter (mm): 12.20 ; Maximum Depth of Cut (mm): 0.50 ; Shank Type: Cylindrical ; Shank Diameter (mm): 16.0000 ; Number of Cutter Inserts: 4 ; Insert Style: LPGT
| Cutting Diameter (mm) | 12.20 |
| Maximum Depth of Cut (mm) | 0.50 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.0000 |
| Number of Cutter Inserts | 4 |
| Insert Style | LPGT |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 4 |
| Maximum RPM | 11400.000 |
| Through Coolant | Through Coolant |
| Overall Length (mm) | 90.0000 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LPGT01? |
| Series | MFH |
| Lead Angle | 10 |
| Head Length (mm) | 25.00 |
| Manufacturers Catalog Number | MFH16S16014T |
