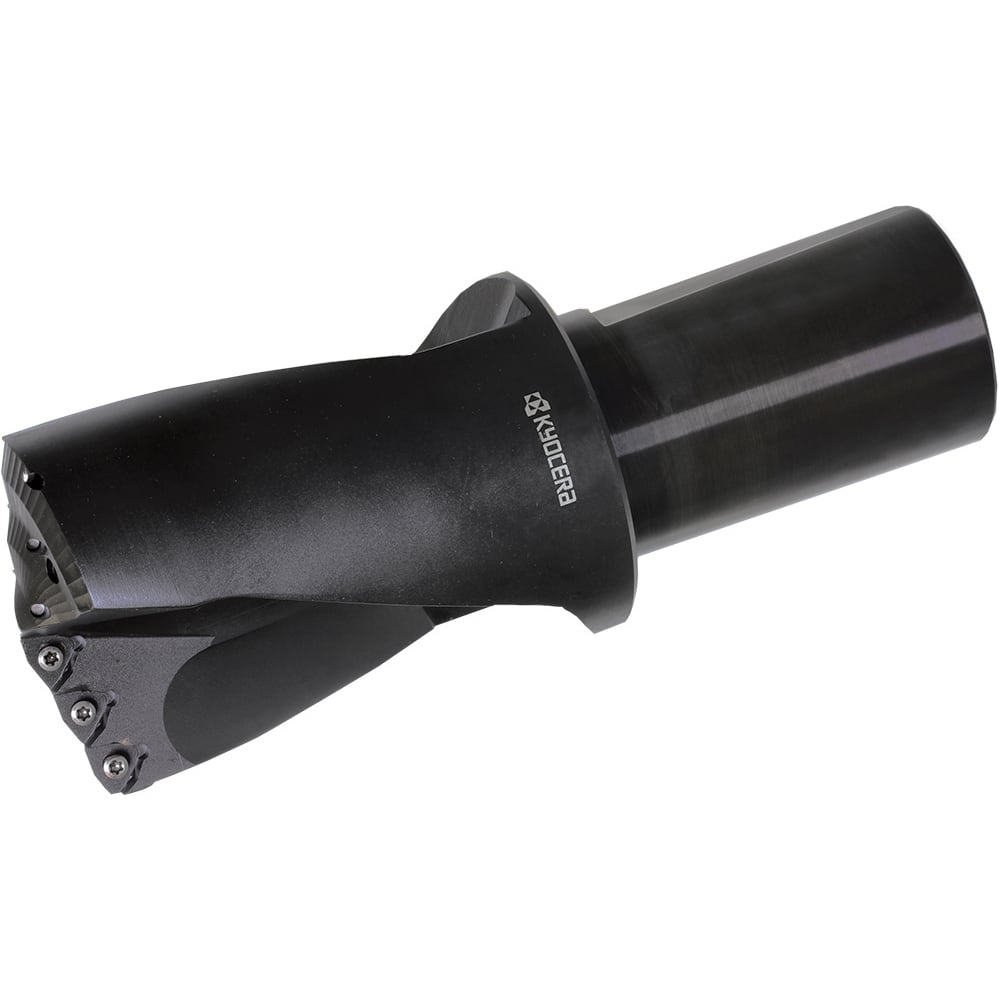

Kyocera - Indexable Insert Drills; Drill Style: DR ; Drill Diameter (mm): 49.00 ; Maximum Drill Depth (mm): 147.07 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.5 ; Cutting Direction: Right Hand
Item #: 28495117
Brand: Kyocera
Model #: 8600886
Product Specifications
Indexable Insert Drills; Drill Style: DR ; Drill Diameter (mm): 49.00 ; Maximum Drill Depth (mm): 147.07 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.5 ; Cutting Direction: Right Hand
| Drill Style | DR |
| Drill Diameter (mm) | 49.00 |
| Maximum Drill Depth (mm) | 147.07 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.5 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 4 |
| Maximum Drill Diameter (mm) | 49.00 |
| Overall Length/Projection (mm) | 251.97 |
| Insert Compatibility | WCMX |
| Flute Length (mm) | 147.07 |
| Body Length (mm) | 183.640 |
| Shank Length (Decimal Inch) | 2.6900 |
