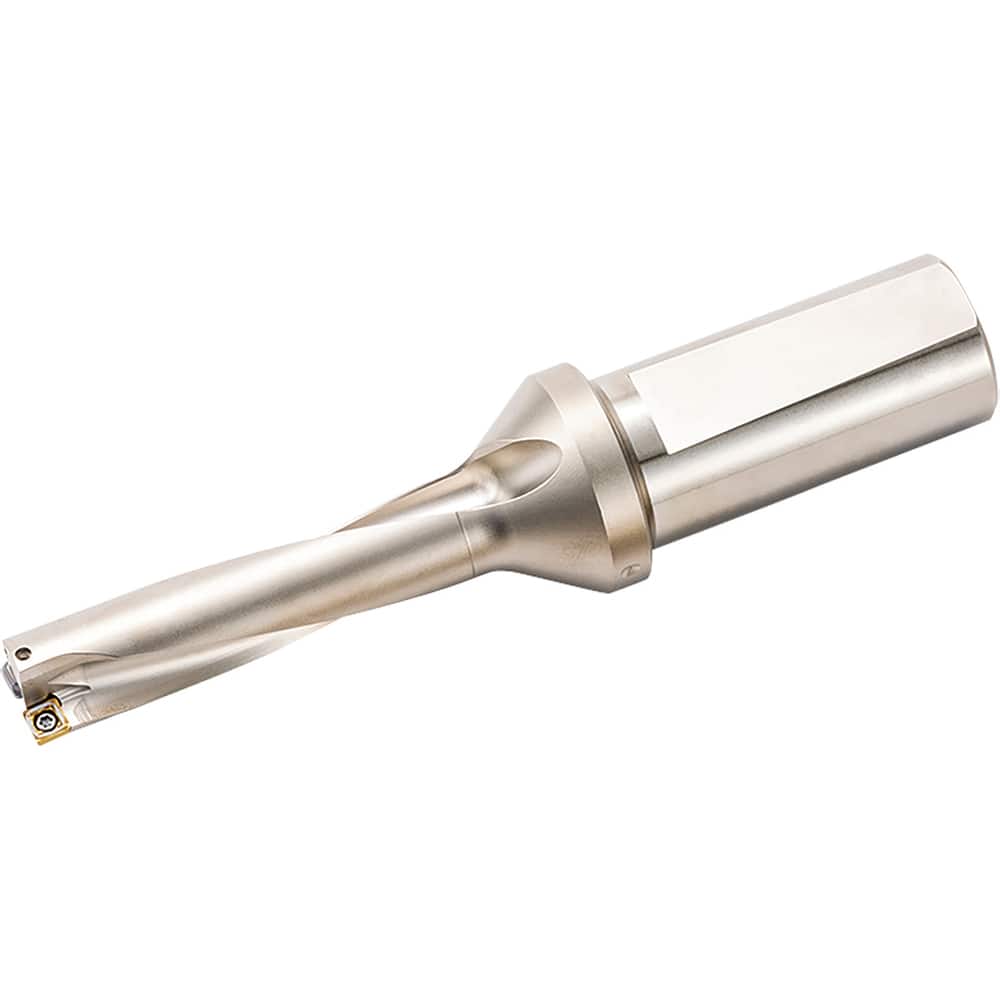

Kyocera - Indexable Insert Drills; Drill Style: DRV ; Drill Diameter (mm): 19.00 ; Maximum Drill Depth (mm): 76.00 ; Shank Type: Cylindrical ; Shank Diameter (mm): 25.0000 ; Cutting Direction: Right Hand
Item #: 28495471
Brand: Kyocera
Model #: 8858565
Product Specifications
Indexable Insert Drills; Drill Style: DRV ; Drill Diameter (mm): 19.00 ; Maximum Drill Depth (mm): 76.00 ; Shank Type: Cylindrical ; Shank Diameter (mm): 25.0000 ; Cutting Direction: Right Hand
| Drill Style | DRV |
| Drill Diameter (mm) | 19.00 |
| Maximum Drill Depth (mm) | 76.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.0000 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 19.00 |
| Overall Length/Projection (mm) | 151.00 |
| Insert Compatibility | Inboard Insert: SCMT060210-...-I; Outboard Insert: SCMT060205-...-E |
| Flute Length (mm) | 76.00 |
| Body Length (mm) | 97.000 |
| Shank Length (mm) | 54.000 |
| Collar Diameter (mm) | 25.00 |
