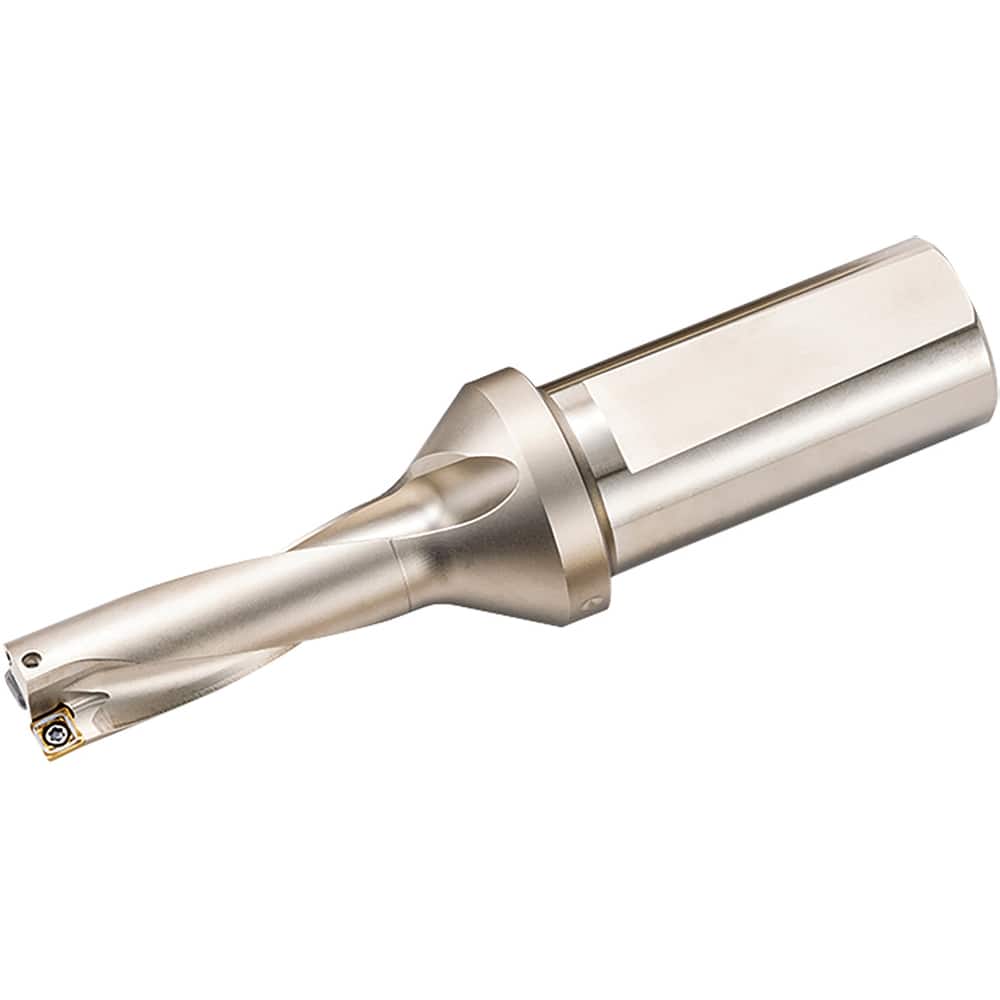

Kyocera - Indexable Insert Drills; Drill Style: DRV ; Drill Diameter (Inch): 1.875 ; Maximum Drill Depth (Inch): 5.625 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.5 ; Cutting Direction: Right Hand
Item #: 28495620
Brand: Kyocera
Model #: 8865239
Product Specifications
Indexable Insert Drills; Drill Style: DRV ; Drill Diameter (Inch): 1.875 ; Maximum Drill Depth (Inch): 5.625 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.5 ; Cutting Direction: Right Hand
| Drill Style | DRV |
| Drill Diameter (Inch) | 1.875 |
| Maximum Drill Depth (Inch) | 5.625 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.5 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.8750 |
| Overall Length/Projection (Decimal Inch) | 9.6173 |
| Insert Compatibility | Inboard Insert: SCMT140510...-I; Outboard Insert: SCMT140508...-E |
| Flute Length (Decimal Inch) | 5.6250 |
| Body Length (mm) | 175.280 |
| Shank Length (mm) | 69.000 |
| Collar Diameter (mm) | 54.00 |
