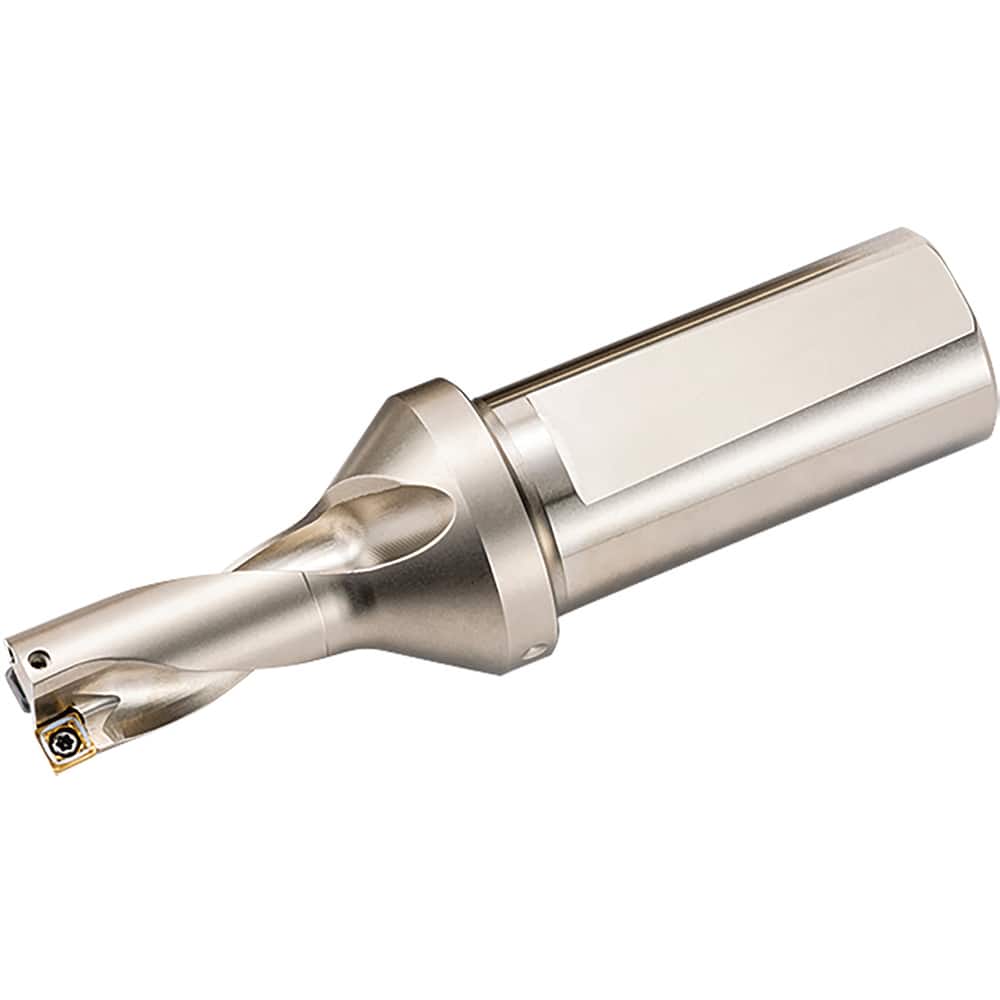

Kyocera - Indexable Insert Drills; Drill Style: DRV ; Drill Diameter (mm): 31.00 ; Maximum Drill Depth (mm): 62.00 ; Shank Type: Cylindrical ; Shank Diameter (mm): 32.0000 ; Cutting Direction: Right Hand
Item #: 28495802
Brand: Kyocera
Model #: 8858516
Product Specifications
Indexable Insert Drills; Drill Style: DRV ; Drill Diameter (mm): 31.00 ; Maximum Drill Depth (mm): 62.00 ; Shank Type: Cylindrical ; Shank Diameter (mm): 32.0000 ; Cutting Direction: Right Hand
| Drill Style | DRV |
| Drill Diameter (mm) | 31.00 |
| Maximum Drill Depth (mm) | 62.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.0000 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 31.00 |
| Overall Length/Projection (mm) | 144.00 |
| Insert Compatibility | Inboard Insert: SCMT090410-...-I; Outboard Insert: SCMT090405-...-E |
| Flute Length (mm) | 62.00 |
| Body Length (mm) | 85.000 |
| Shank Length (mm) | 59.000 |
| Collar Diameter (mm) | 32.00 |
