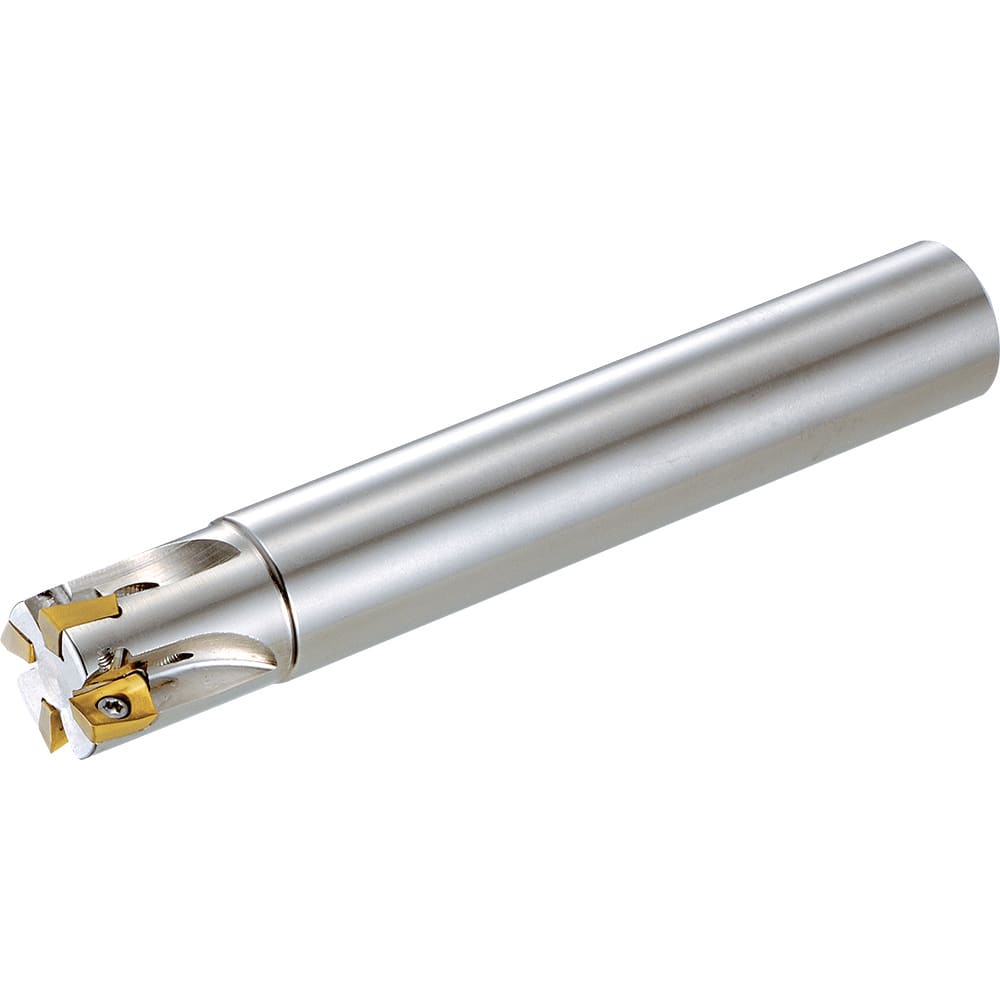

Kyocera - Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 1.2500 ; Cutting Diameter (Inch): 1.25 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.2500 ; Overall Length/Projection (Inch): 5.0000 ; Lead Angle: 90
Item #: 28495968
Brand: Kyocera
Model #: 8821884
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 1.2500 ; Cutting Diameter (Inch): 1.25 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.2500 ; Overall Length/Projection (Inch): 5.0000 ; Lead Angle: 90
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1.25 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.2500 |
| Overall Length/Projection (Inch) | 5.0000 |
| Lead Angle | 90 |
| Series | MECX |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 6.00 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MECX |
| Number of Flutes | 6 |
| Head Length (mm) | 30.00 |
| Weldon Flat | No |
| Insert Compatibility | BDMT0703?ER-JT; BDMT0703?ER-JS |
| Shank Length (Decimal Inch) | 3.8189 |
| Maximum RPM | 33700.000 |
| Toolholder Material | Steel |
| Rake Angle | 16.3 (Axial);-8.9 (Radial) |
| Multi-Use Tool | Yes |
| Hand of Holder | Right Hand |
