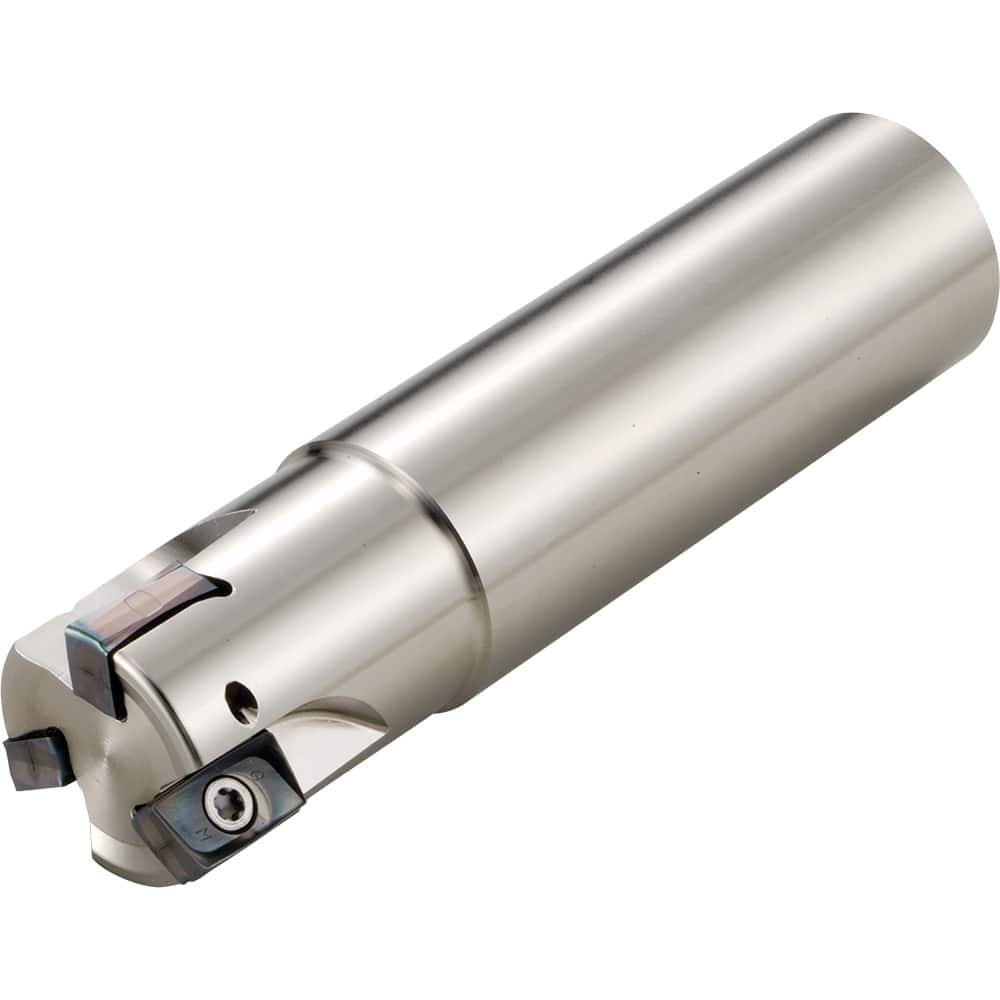

Kyocera - Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 0.7500 ; Cutting Diameter (Inch): 0.75 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 0.6250 ; Overall Length/Projection (Inch): 3.2500 ; Lead Angle: 90
Item #: 28496032
Brand: Kyocera
Model #: 8606150
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 0.7500 ; Cutting Diameter (Inch): 0.75 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 0.6250 ; Overall Length/Projection (Inch): 3.2500 ; Lead Angle: 90
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 0.75 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 0.6250 |
| Overall Length/Projection (Inch) | 3.2500 |
| Lead Angle | 90 |
| Series | MEW |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEW |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.1450 |
| Weldon Flat | Yes |
| Insert Compatibility | LOMU1004?; LOGT1004? |
| Shank Length (Decimal Inch) | 2.1050 |
| Maximum RPM | 42000.000 |
| Toolholder Material | Steel |
| Rake Angle | 7 (Axial);-20 (Radial) |
| Multi-Use Tool | Yes |
| Hand of Holder | Right Hand |
