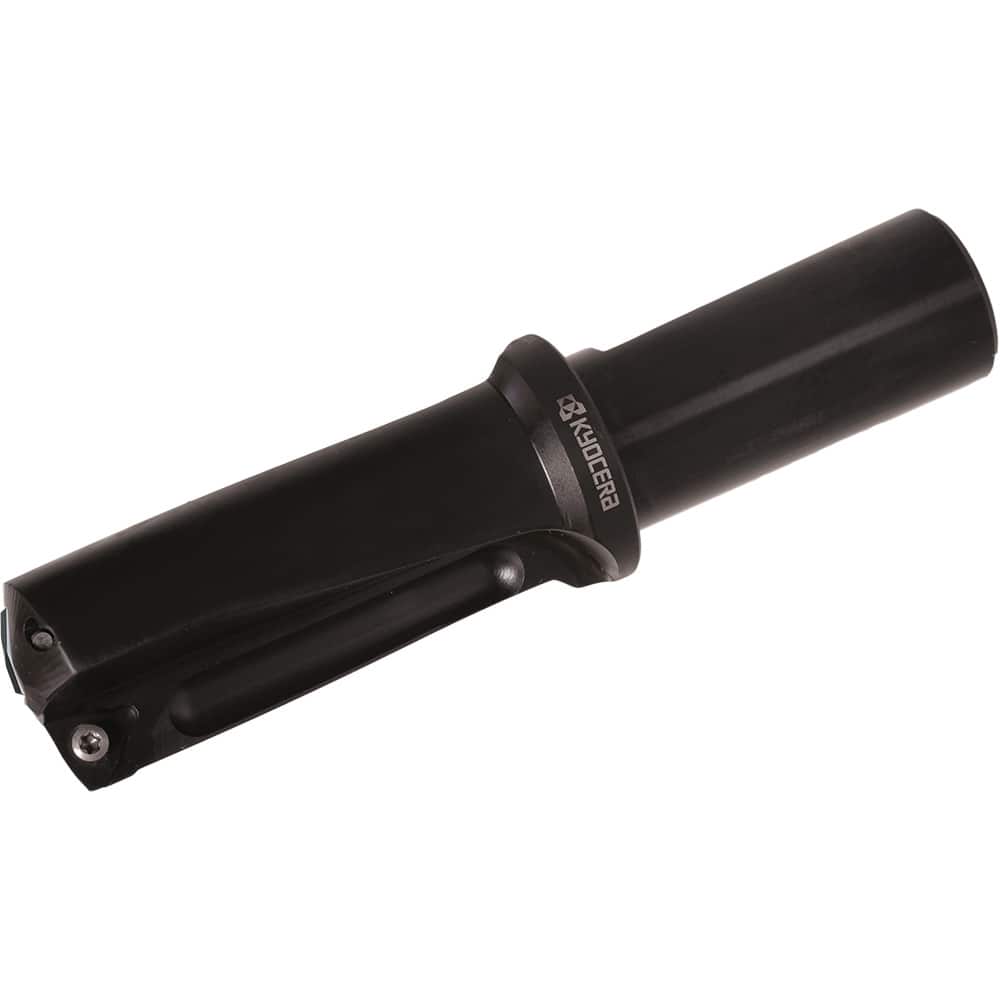

Kyocera - Indexable Insert Drills; Drill Style: DR ; Drill Diameter (mm): 24.00 ; Maximum Drill Depth (Inch): 1.75 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1 ; Cutting Direction: Right Hand
Item #: 28496107
Brand: Kyocera
Model #: 8600782
Product Specifications
Indexable Insert Drills; Drill Style: DR ; Drill Diameter (mm): 24.00 ; Maximum Drill Depth (Inch): 1.75 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1 ; Cutting Direction: Right Hand
| Drill Style | DR |
| Drill Diameter (mm) | 24.00 |
| Maximum Drill Depth (Inch) | 1.75 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 24.00 |
| Overall Length/Projection (mm) | 121.41 |
| Insert Compatibility | WCMX |
| Flute Length (Decimal Inch) | 1.7500 |
| Body Length (Decimal Inch) | 2.5000 |
| Shank Length (Decimal Inch) | 2.2800 |
