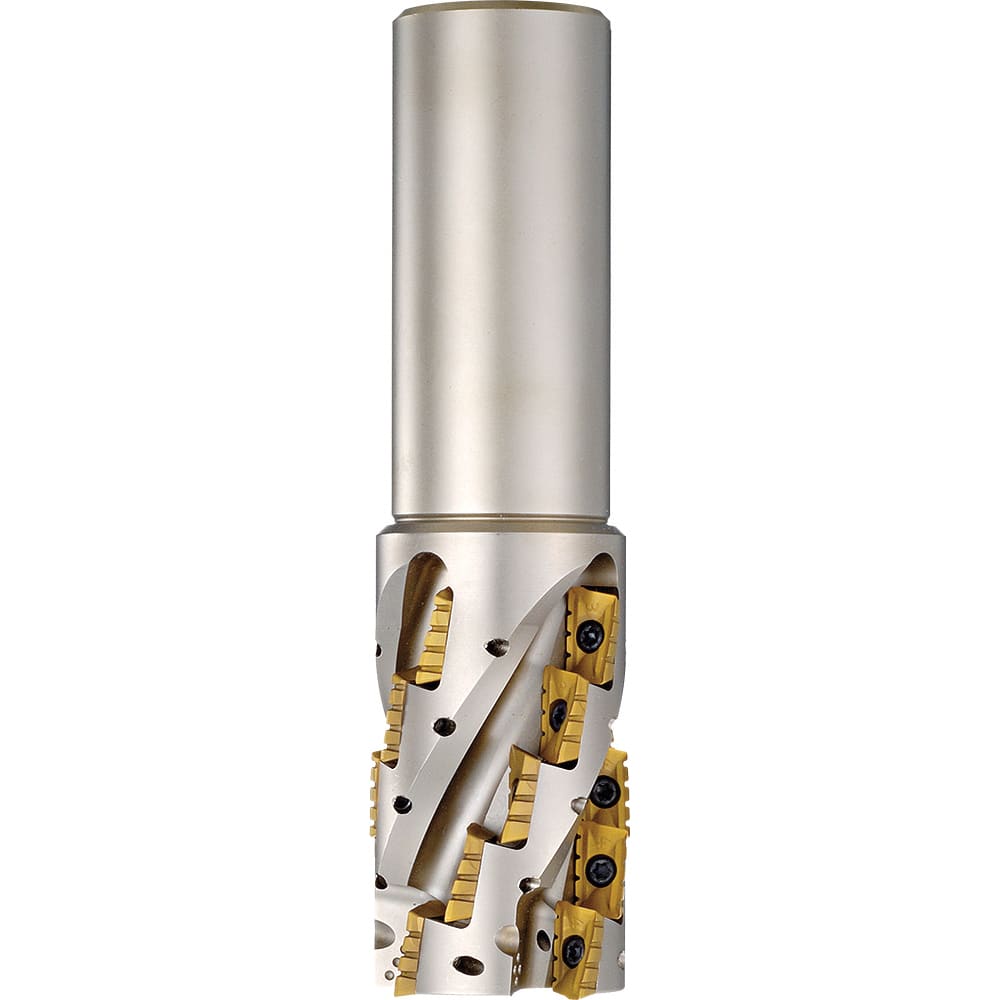

Kyocera - Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 1.5000 ; Cutting Diameter (Inch): 1.5 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.2500 ; Overall Length/Projection (Decimal Inch): 4.9000 ; Lead Angle: 90
Item #: 28496131
Brand: Kyocera
Model #: 8824622
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 1.5000 ; Cutting Diameter (Inch): 1.5 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.2500 ; Overall Length/Projection (Decimal Inch): 4.9000 ; Lead Angle: 90
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1.5 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.9000 |
| Lead Angle | 90 |
| Series | MEC |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 55.00 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | MECH |
| Number of Flutes | 4 |
| Head Length (mm) | 64.00 |
| Weldon Flat | Yes |
| Insert Compatibility | BDMT11T308ER-N2; BDMT11T308ER-N3 |
| Shank Length (Decimal Inch) | 2.3803 |
| Toolholder Material | Steel |
| Rake Angle | 23 (Axial);-8 (Radial) |
| Multi-Use Tool | Yes |
| Hand of Holder | Right Hand |
