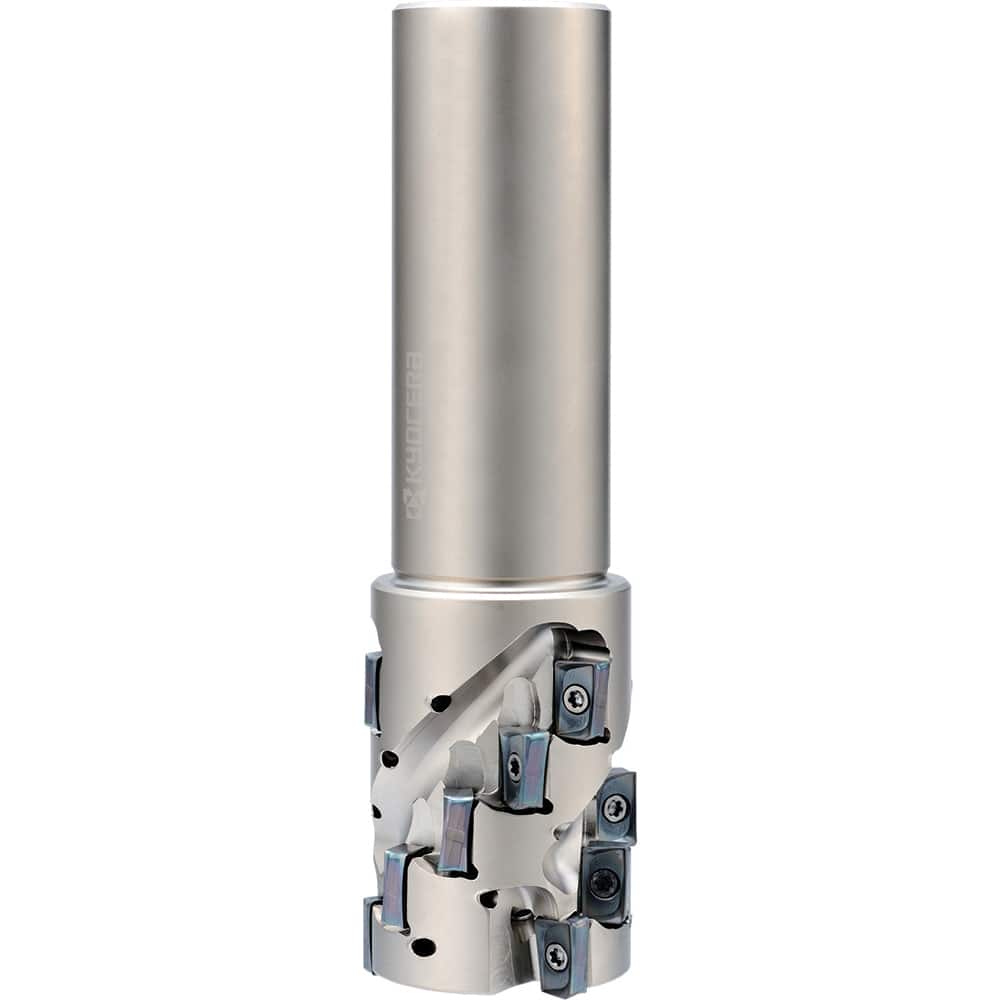

Kyocera - Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 1.5000 ; Cutting Diameter (Inch): 1.5 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.5000 ; Overall Length/Projection (Decimal Inch): 4.9570 ; Lead Angle: 90
Item #: 28496164
Brand: Kyocera
Model #: 8838477
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 1.5000 ; Cutting Diameter (Inch): 1.5 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.5000 ; Overall Length/Projection (Decimal Inch): 4.9570 ; Lead Angle: 90
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1.5 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.5000 |
| Overall Length/Projection (Decimal Inch) | 4.9570 |
| Lead Angle | 90 |
| Series | MEW |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 46.00 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | MEWH |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 2.2670 |
| Weldon Flat | Yes |
| Insert Compatibility | LOMU1004? |
| Shank Length (Decimal Inch) | 2.6900 |
| Toolholder Material | Steel |
| Rake Angle | 13 (Axial);-20 (Radial) |
| Multi-Use Tool | Yes |
| Hand of Holder | Right Hand |
