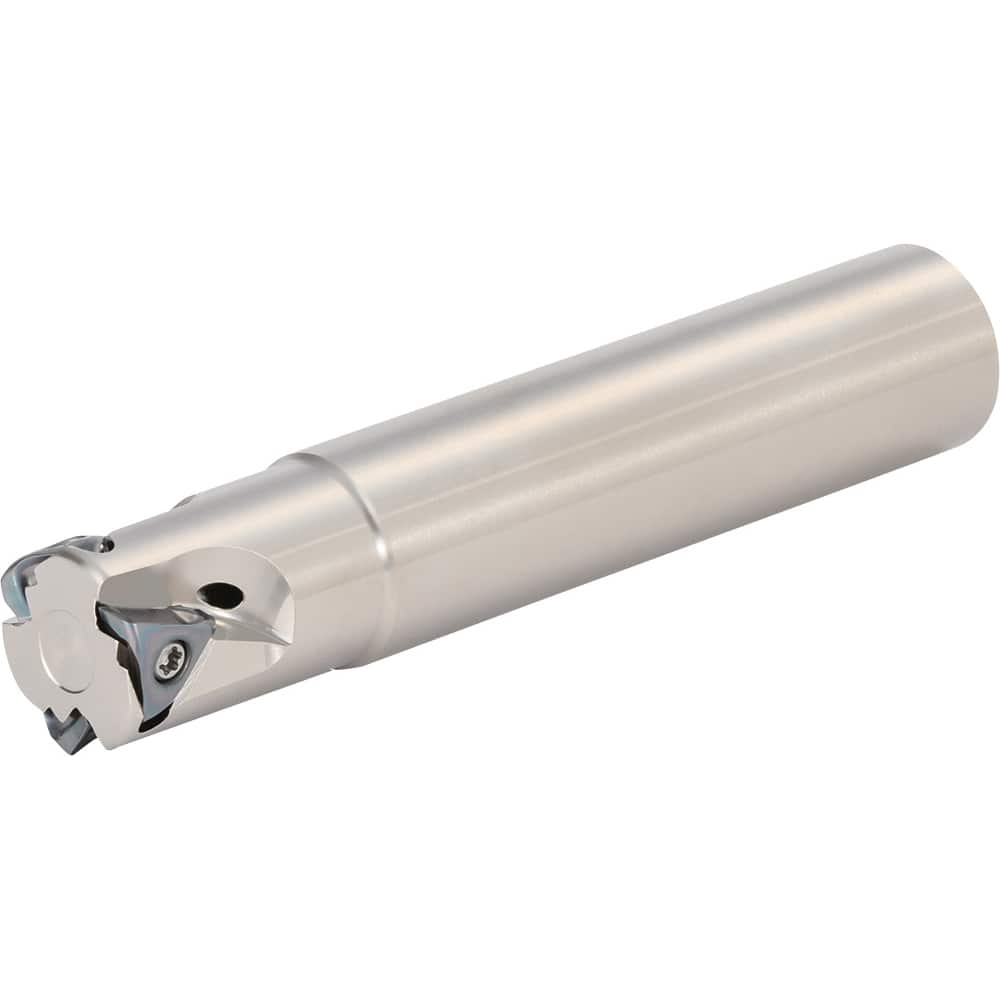

Kyocera - Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 32.00 ; Cutting Diameter (Decimal Inch): 1.2598 ; Shank Type: Cylindrical ; Shank Diameter (mm): 25.0000 ; Overall Length/Projection (mm): 130.00 ; Lead Angle: 90
Item #: 28496198
Brand: Kyocera
Model #: 8864743
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 32.00 ; Cutting Diameter (Decimal Inch): 1.2598 ; Shank Type: Cylindrical ; Shank Diameter (mm): 25.0000 ; Overall Length/Projection (mm): 130.00 ; Lead Angle: 90
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.0000 |
| Overall Length/Projection (mm) | 130.00 |
| Lead Angle | 90 |
| Series | MEV |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 6.00 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEV |
| Number of Flutes | 4 |
| Head Length (mm) | 32.00 |
| Weldon Flat | No |
| Insert Compatibility | TOMT06? |
| Shank Length (mm) | 98.000 |
| Maximum RPM | 20000.000 |
| Toolholder Material | Steel |
| Rake Angle | 17 (Axial);-36 (Radial) |
| Multi-Use Tool | Yes |
| Hand of Holder | Right Hand |
