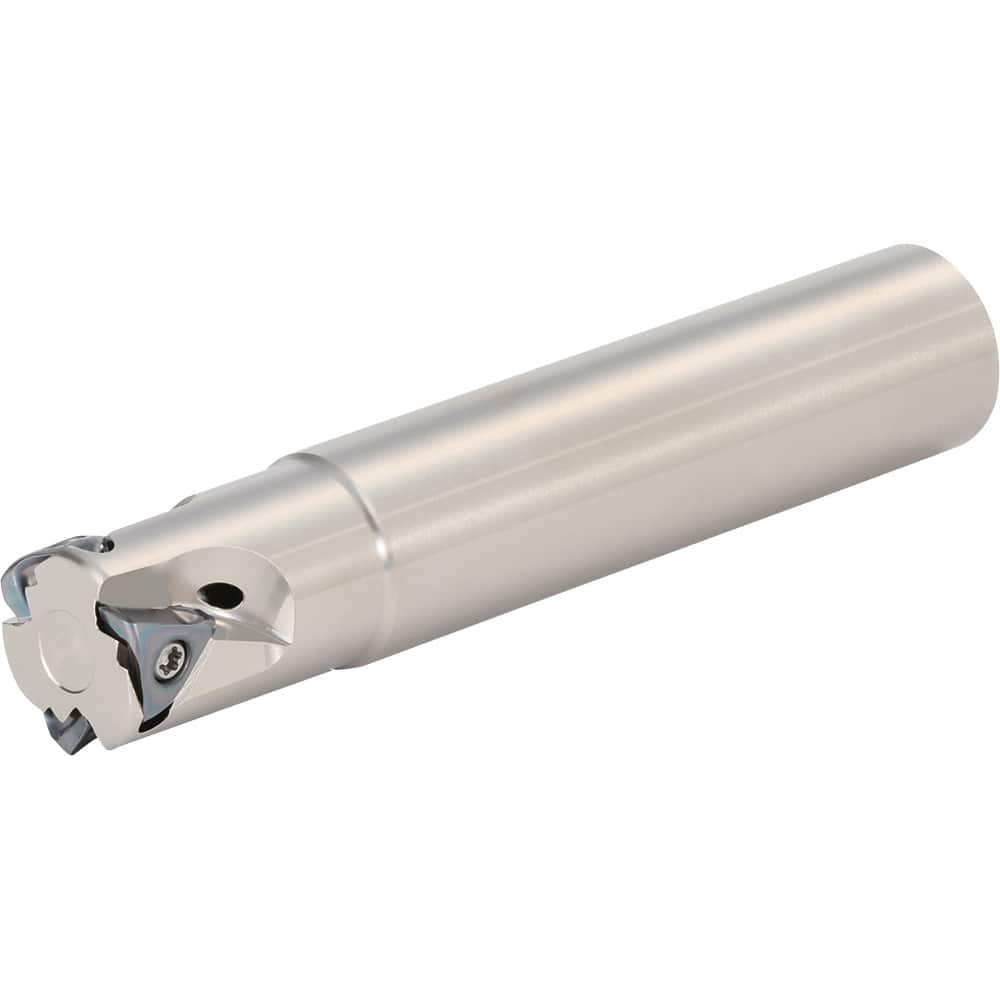

Kyocera - Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 1.2500 ; Cutting Diameter (Inch): 1.25 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.2500 ; Overall Length/Projection (Inch): 8 ; Lead Angle: 90
Item #: 28496305
Brand: Kyocera
Model #: 8609428
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 1.2500 ; Cutting Diameter (Inch): 1.25 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.2500 ; Overall Length/Projection (Inch): 8 ; Lead Angle: 90
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1.25 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.2500 |
| Overall Length/Projection (Inch) | 8 |
| Lead Angle | 90 |
| Series | MEV |
| Through Coolant | Coolant Through |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEV |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 2.6000 |
| Weldon Flat | No |
| Insert Compatibility | TOMT06?-GM; TOMT06?-SM |
| Shank Length (Decimal Inch) | 5.4000 |
| Maximum RPM | 20000.000 |
| Toolholder Material | Steel |
| Rake Angle | 17 (Axial);-35 (Radial) |
| Multi-Use Tool | Yes |
| Hand of Holder | Right Hand |
