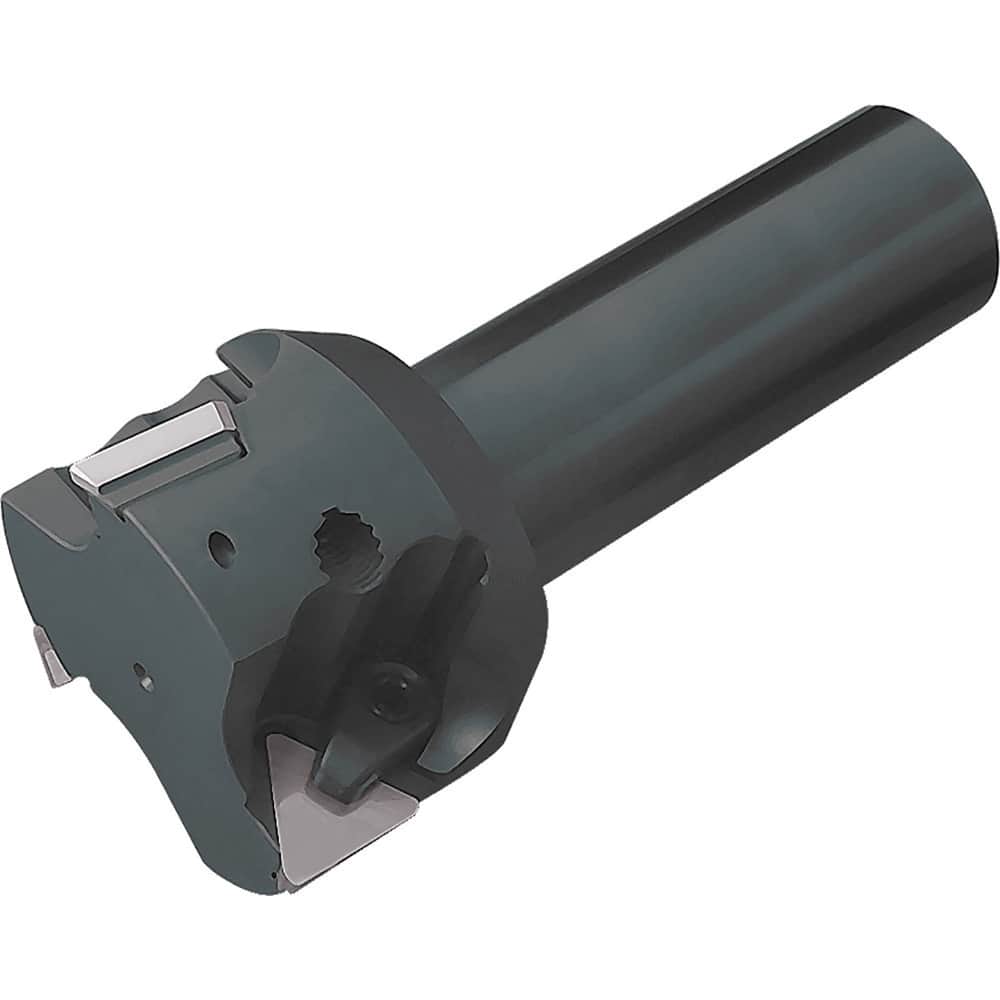

Kyocera - Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 2.5000 ; Cutting Diameter (Inch): 2.5 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.2500 ; Overall Length/Projection (Decimal Inch): 3.9000 ; Lead Angle: 90
Item #: 28496339
Brand: Kyocera
Model #: 8603986
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 2.5000 ; Cutting Diameter (Inch): 2.5 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.2500 ; Overall Length/Projection (Decimal Inch): 3.9000 ; Lead Angle: 90
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Cutting Diameter (Inch) | 2.5 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 3.9000 |
| Lead Angle | 90 |
| Series | MTP |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 18.00 |
| Insert Holding Method | Clamp |
| End Mill Type | End Mill |
| Cutter Style | MTP |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.6900 |
| Weldon Flat | Yes |
| Insert Compatibility | TPMR43PDER-H; TPKR43PDER-S; TPK43PDTR; TPK43PDFR |
| Shank Length (Decimal Inch) | 2.2100 |
| Toolholder Material | Steel |
| Rake Angle | 8 (Axial);0 (Radial) |
| Multi-Use Tool | Yes |
| Hand of Holder | Right Hand |
