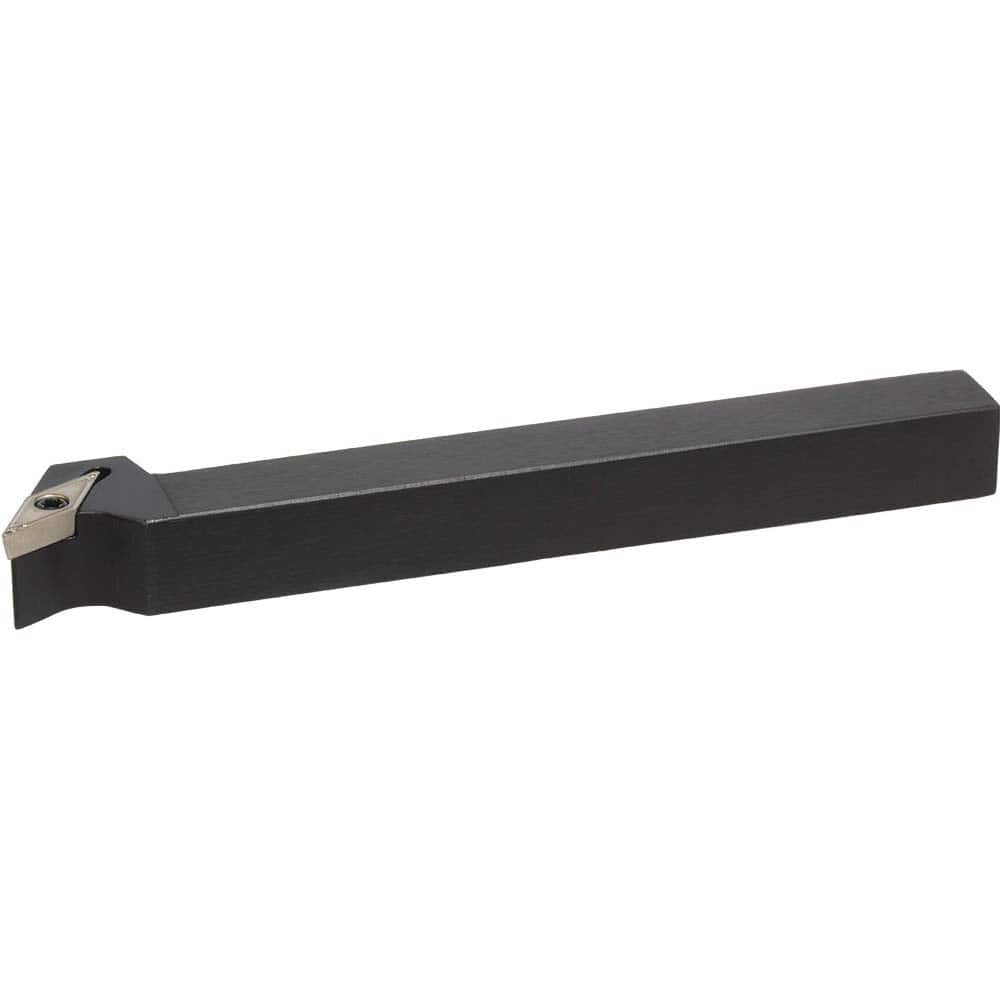

Kyocera - RH SVPP-FF 0° (Axial), 0° (Radial)° Positive Rake Indexable Turning Toolholder
Item #: 28505485
Brand: Kyocera
Model #: 8821143
Product Specifications
| Hand of Holder | Right Hand |
| Toolholder Style | SVPP-FF |
| Rake | Positive |
| Rake Angle | 0 (Axial);0 (Radial) |
| Series | SVPP |
| Lead Angle | 117.5 |
| Shank Width (mm) | 12.00 |
| Shank Height (mm) | 12.00 |
| Insert Compatibility | VPGT1515?; VPET1515? |
| Multi-Use Application | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4724 |
| Head Length (mm) | 12.00 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Toolholder Material | Steel |
| ISO Number | SVPPR1212F-08FF |
| Through Coolant | No |
| Overall Length (mm) | 85.00 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Insert Hand | Right Hand |
