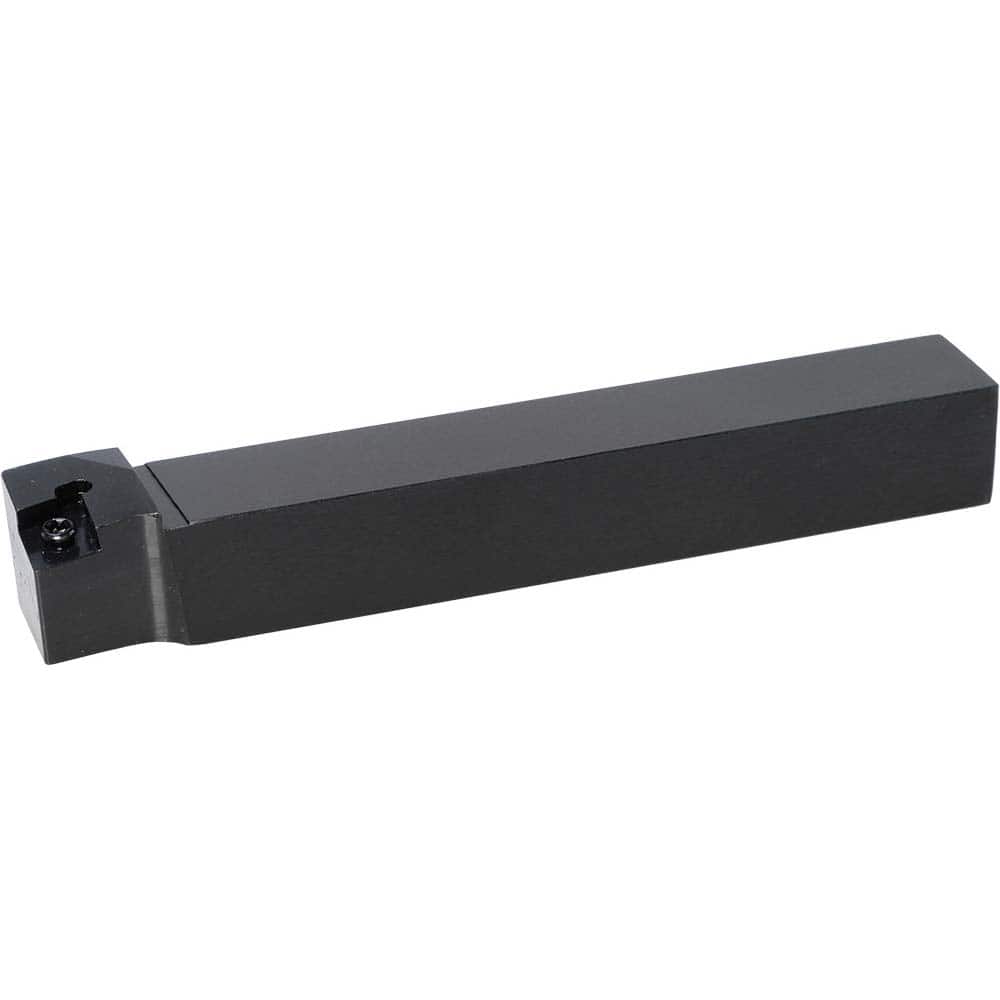

Kyocera - RH SCLN -6° (Axial), -6° (Radial)° Negative Rake Indexable Turning Toolholder
Item #: 28505576
Brand: Kyocera
Model #: 8825460
Product Specifications
| Hand of Holder | Right Hand |
| Toolholder Style | SCLN |
| Rake | Negative |
| Rake Angle | -6 (Axial);-6 (Radial) |
| Series | SCLN |
| Lead Angle | 95 |
| Shank Width (mm) | 10.00 |
| Shank Height (mm) | 10.00 |
| Insert Compatibility | CNGU242? |
| Multi-Use Application | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3937 |
| Head Length (mm) | 15.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.2953 |
| Toolholder Material | Steel |
| ISO Number | SCLNR1010K-07FF |
| Through Coolant | No |
| Overall Length (mm) | 125.00 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Hand | Right Hand |
