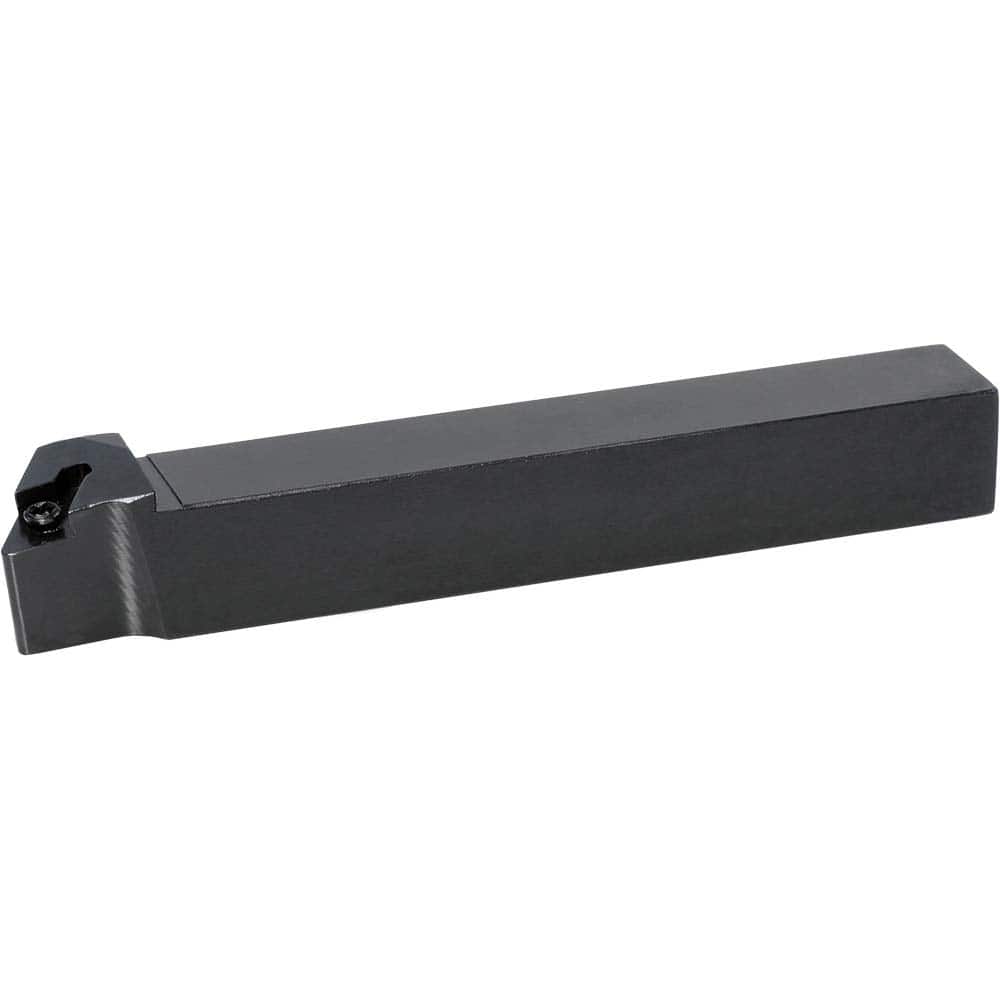

Kyocera - RH SDLN -6° (Axial), -7° (Radial)° Negative Rake Indexable Turning Toolholder
Item #: 28505584
Brand: Kyocera
Model #: 8825462
Product Specifications
| Hand of Holder | Right Hand |
| Toolholder Style | SDLN |
| Rake | Negative |
| Rake Angle | -6 (Axial);-7 (Radial) |
| Series | SDLN |
| Lead Angle | 95 |
| Shank Width (mm) | 10.00 |
| Shank Height (mm) | 10.00 |
| Insert Compatibility | DNGU222? |
| Multi-Use Application | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3937 |
| Head Length (mm) | 18.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.2756 |
| Toolholder Material | Steel |
| ISO Number | SDLNR1010K-08FF |
| Through Coolant | No |
| Overall Length (mm) | 125.00 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Hand | Right Hand |
