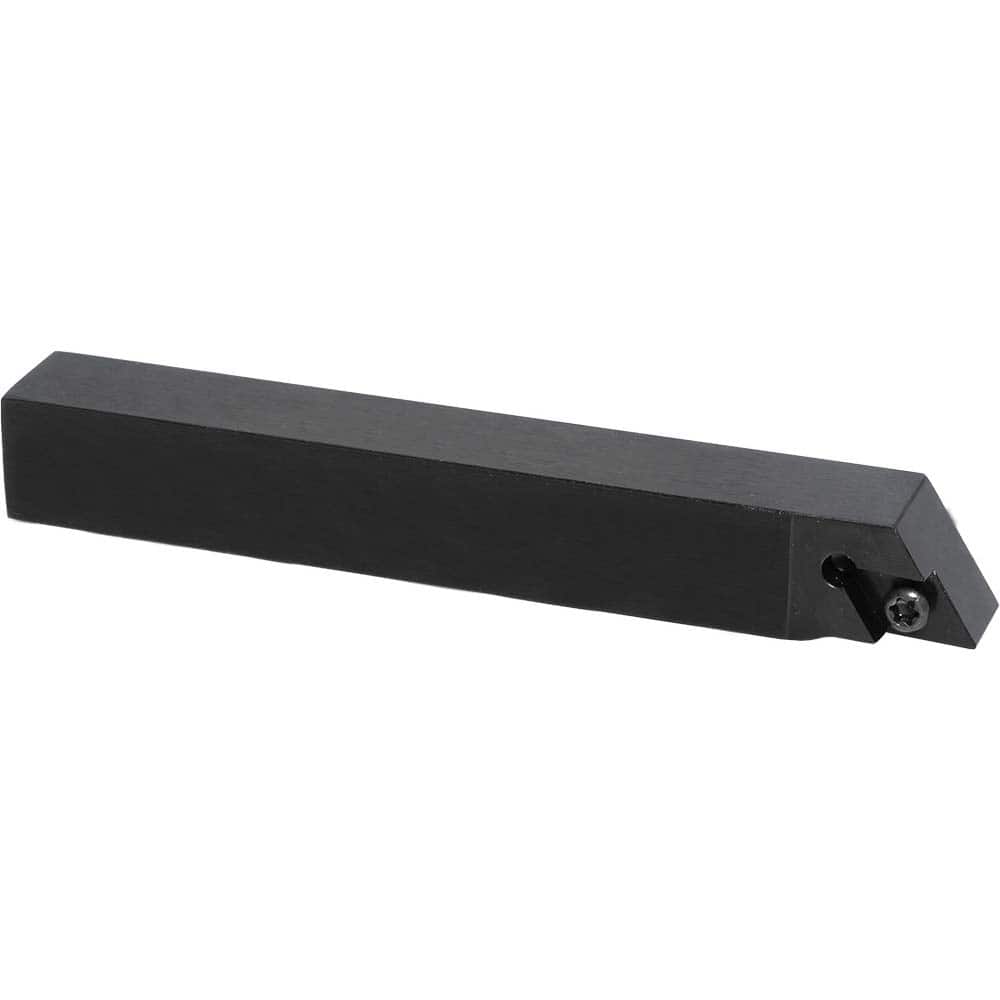

Kyocera - LH SDJC-FF 0° (Axial), 0° (Radial)° Positive Rake Indexable Turning Toolholder
Item #: 28505659
Brand: Kyocera
Model #: 8835056
Product Specifications
| Hand of Holder | Left Hand |
| Toolholder Style | SDJC-FF |
| Rake | Positive |
| Rake Angle | 0 (Axial);0 (Radial) |
| Series | SDJC |
| Lead Angle | 93 |
| Shank Width (mm) | 8.00 |
| Shank Height (mm) | 8.00 |
| Insert Compatibility | DCGT215?; DCMX215?; DCMT215?; DCET215?; DCGW215?; DCMW215? |
| Multi-Use Application | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3150 |
| Head Length (mm) | 14.00 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Toolholder Material | Steel |
| ISO Number | SDJCL0808F07FF |
| Through Coolant | No |
| Overall Length (mm) | 85.00 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Hand | Left Hand |
