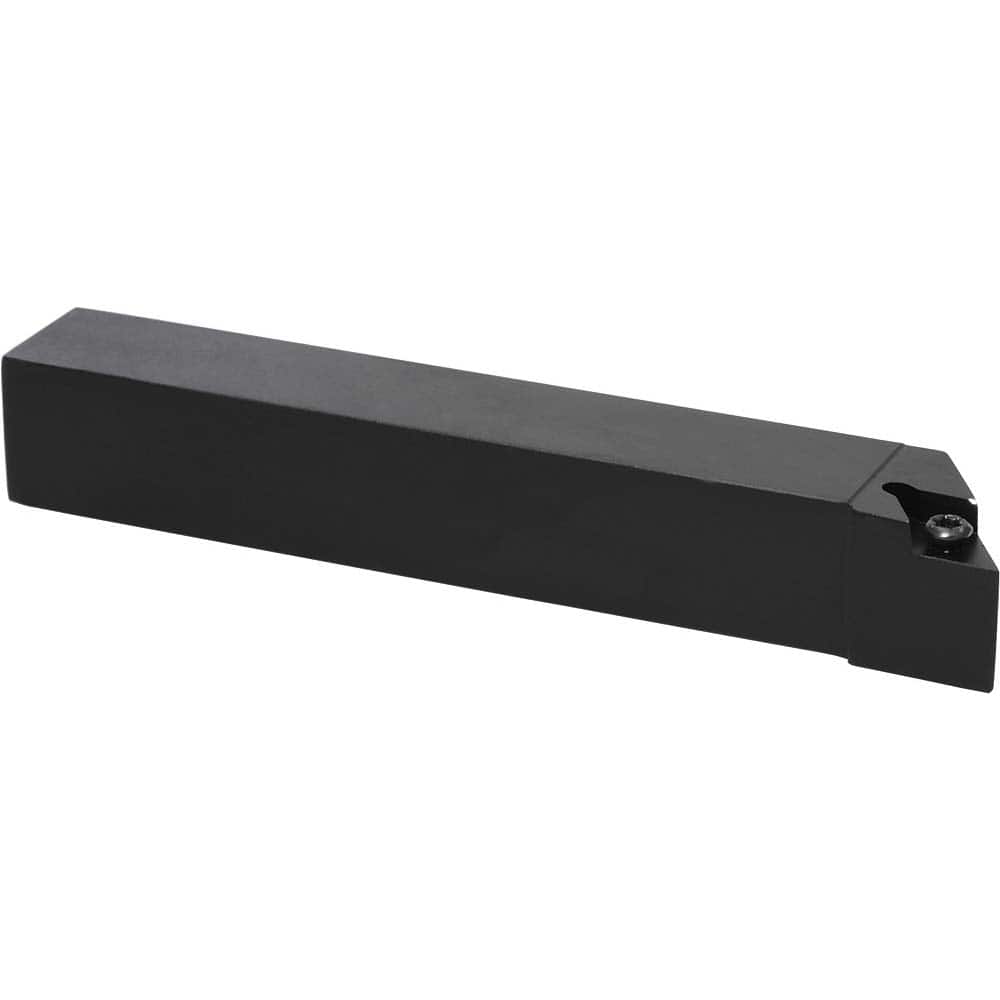

Kyocera - LH SDJC 0° (Axial), 0° (Radial)° Positive Rake Indexable Turning Toolholder
Item #: 28505915
Brand: Kyocera
Model #: 8604145
Product Specifications
| Hand of Holder | Left Hand |
| Toolholder Style | SDJC |
| Rake | Positive |
| Rake Angle | 0 (Axial);0 (Radial) |
| Series | SDTH |
| Lead Angle | 93 |
| Shank Width (Inch) | 5/8 |
| Shank Height (Inch) | 0.625 |
| Overall Length (Inch) | 5 |
| Insert Compatibility | DCGT325?; DCMX325?; DCMT325?; DCET325?; DCGW325?; DCMW325? |
| Multi-Use Application | Yes |
| Back of Bar to Cutting Edge (Inch) | 0.75 |
| Head Length (mm) | 18.00 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
| ISO Number | SDJCL103C |
| Through Coolant | No |
| Corner Radius (Decimal Inch) | 0.0039 |
| Insert Hand | Left Hand |
