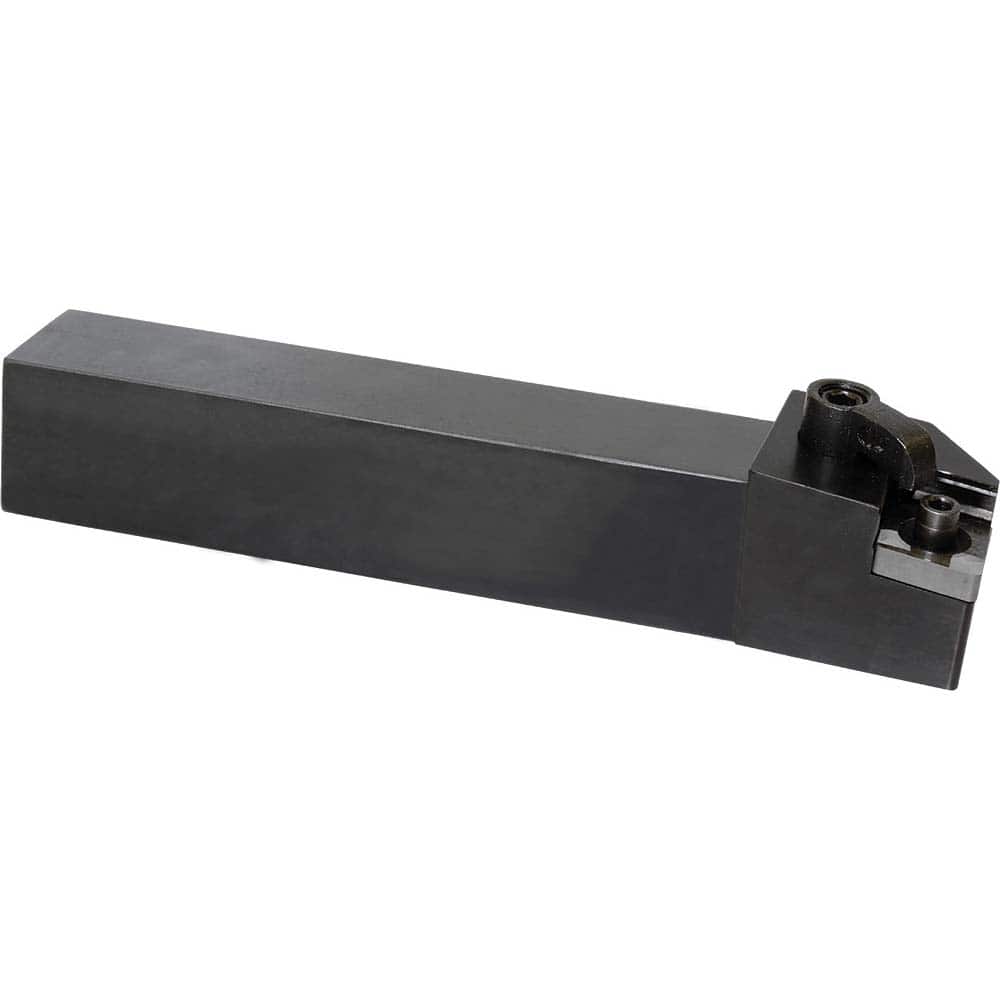

Kyocera - LH MCLN -6° (Axial), -6° (Radial)° Negative Rake Indexable Turning Toolholder
Item #: 28506012
Brand: Kyocera
Model #: 8604289
Product Specifications
| Hand of Holder | Left Hand |
| Toolholder Style | MCLN |
| Rake | Negative |
| Rake Angle | -6 (Axial);-6 (Radial) |
| Series | MCLN |
| Lead Angle | 95 |
| Shank Width (Inch) | 1-1/4 |
| Shank Height (Inch) | 1.25 |
| Overall Length (Inch) | 6 |
| Insert Compatibility | CNMG64?; CNMM64?; CNGG64?; CNMA64?; CNGA64? |
| Multi-Use Application | Yes |
| Back of Bar to Cutting Edge (Inch) | 1.5 |
| Head Length (Decimal Inch) | 1.5000 |
| Insert Inscribed Circle (Inch) | 3/4 |
| Toolholder Material | Steel |
| ISO Number | MCLNL206D |
| Through Coolant | No |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Left Hand |
