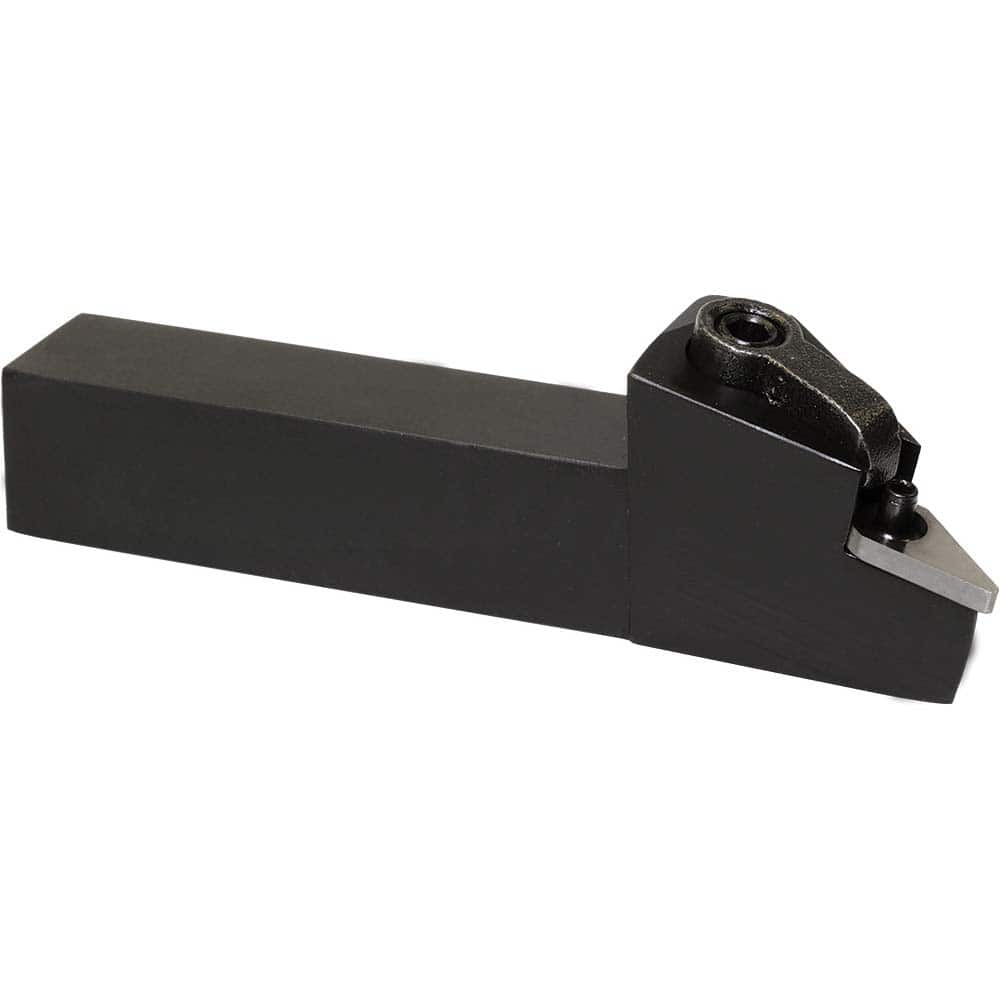

Kyocera - LH MVJN -6° (Axial), -9° (Radial)° Negative Rake Indexable Turning Toolholder
Item #: 28506053
Brand: Kyocera
Model #: 8604207
Product Specifications
| Hand of Holder | Left Hand |
| Toolholder Style | MVJN |
| Rake | Negative |
| Rake Angle | -6 (Axial);-9 (Radial) |
| Series | MVJN |
| Lead Angle | 93 |
| Shank Width (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Overall Length (Inch) | 5 |
| Insert Compatibility | VNMG33?; VNMA33?; VNMM33... |
| Multi-Use Application | Yes |
| Back of Bar to Cutting Edge (Inch) | 1.25 |
| Head Length (Decimal Inch) | 1.6900 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
| ISO Number | MVJNL163C |
| Through Coolant | No |
| Corner Radius (Decimal Inch) | 0.0157 |
| Insert Hand | Left Hand |
