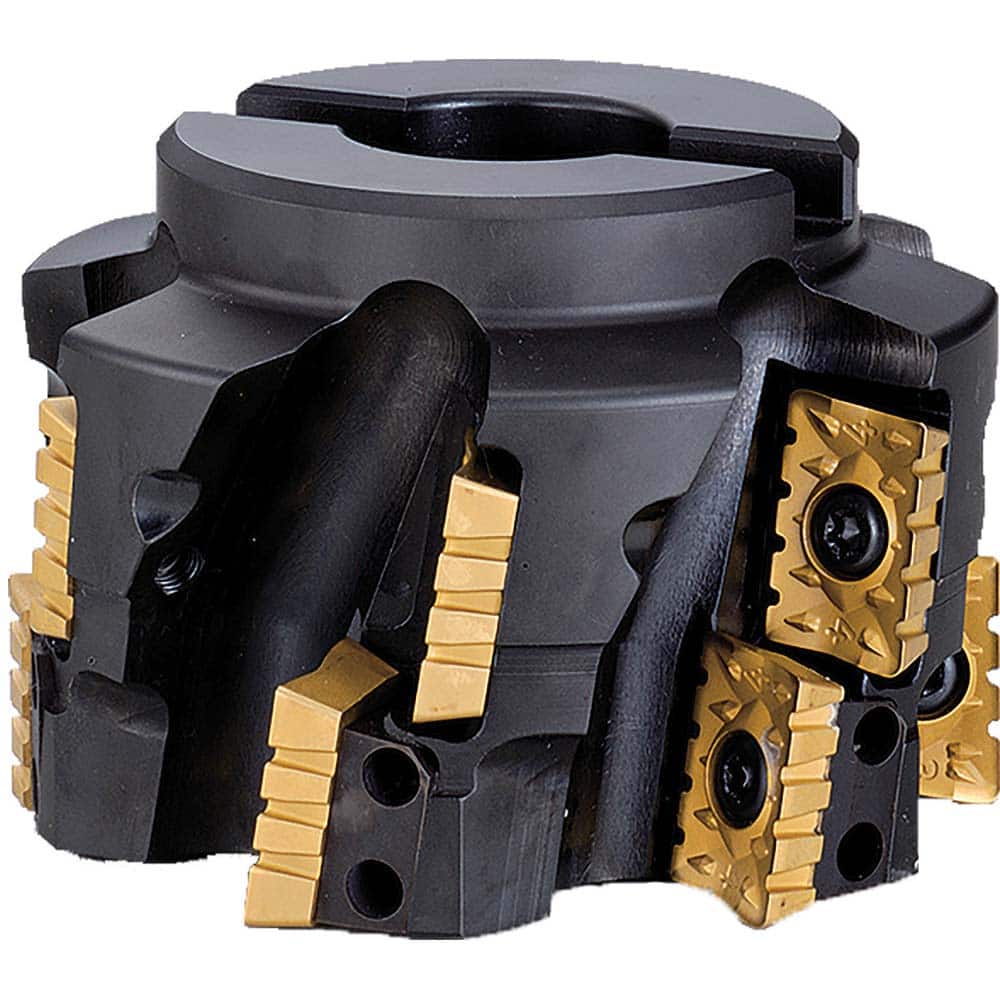

Kyocera - Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 125.00 ; Cutting Diameter (Decimal Inch): 4.9213 ; Arbor Hole Diameter (Inch): 1.5 ; Lead Angle: 90 ; Overall Height (mm): 60.00000 ; Insert Compatibility: APMT2506?
Item #: 28506194
Brand: Kyocera
Model #: 8820944
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 125.00 ; Cutting Diameter (Decimal Inch): 4.9213 ; Arbor Hole Diameter (Inch): 1.5 ; Lead Angle: 90 ; Overall Height (mm): 60.00000 ; Insert Compatibility: APMT2506?
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (Inch) | 1.5 |
| Lead Angle | 90 |
| Overall Height (mm) | 60.00000 |
| Insert Compatibility | APMT2506? |
| Series | MSR |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.9252 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | MSR |
| Number of Flutes | 6 |
| Keyway Width (Inch) | 0.625 |
| Keyway Depth (mm) | 10.00 |
| Pitch | Standard |
| ISO Number | MSR125R-1 |
| Counterbore Diameter (Decimal Inch) | 2.1260 |
| Toolholder Material | Steel |
