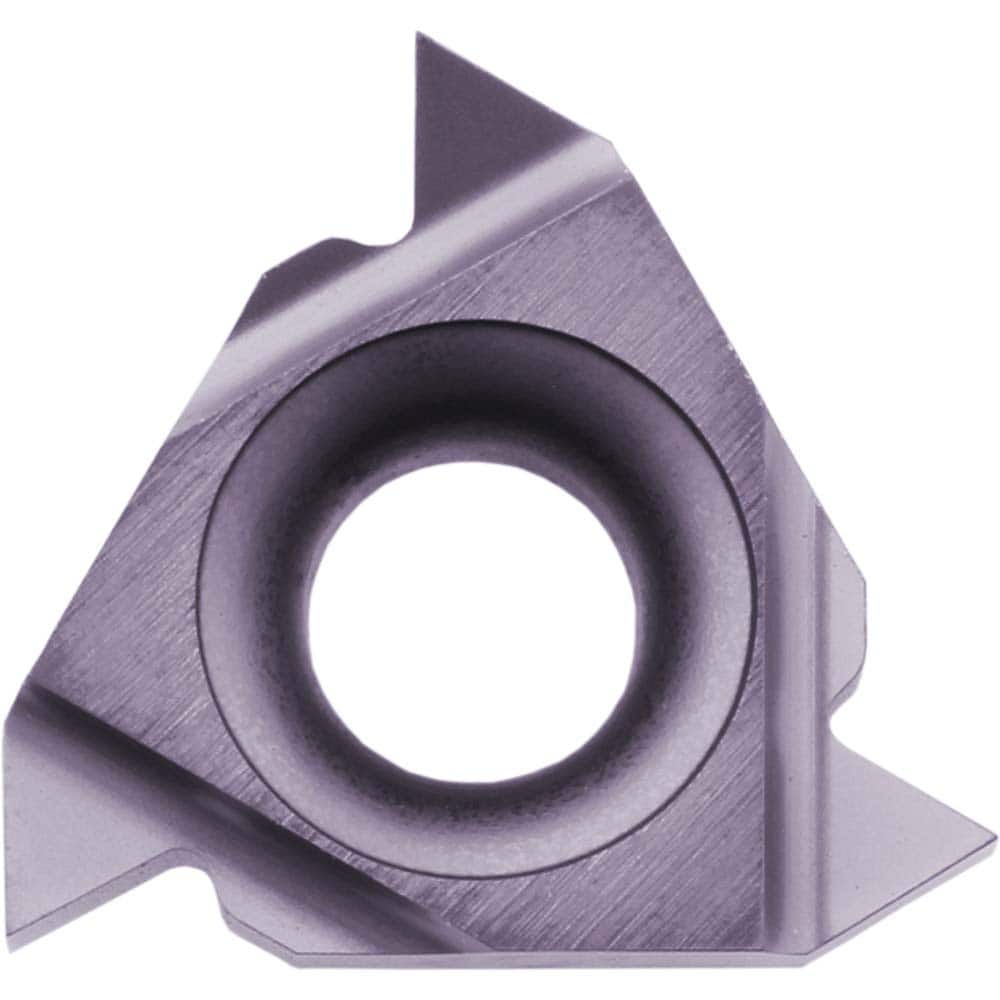

16IRG60 PR1115 Carbide Laydown Threading Insert - TiAlN Finish, RH Internal Metric;UN Thread, 14-8 TPI, 3/8″ Inscribed Circle, 3.68mm Thick
Item #: 28512648
Brand: Kyocera
Model #: TJY18238
Product Specifications
| Insert Style | 16IR |
| Insert Size Code | 16 |
| Manufacturer Grade | PR1115 |
| Thread Type | Internal |
| Pitch (mm) | 1.75 to 3.00 |
| Thread Standard | UN; Metric |
| Insert Hand | Right Hand |
| Thickness (mm) | 3.68 |
| Included Angle | 60 |
| Series | INTH |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (mm) | 0.10 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.00 |
| Manufacturers Catalog Number | 16IRG60PR1115 |
| Coating/Finish | TiAlN |
