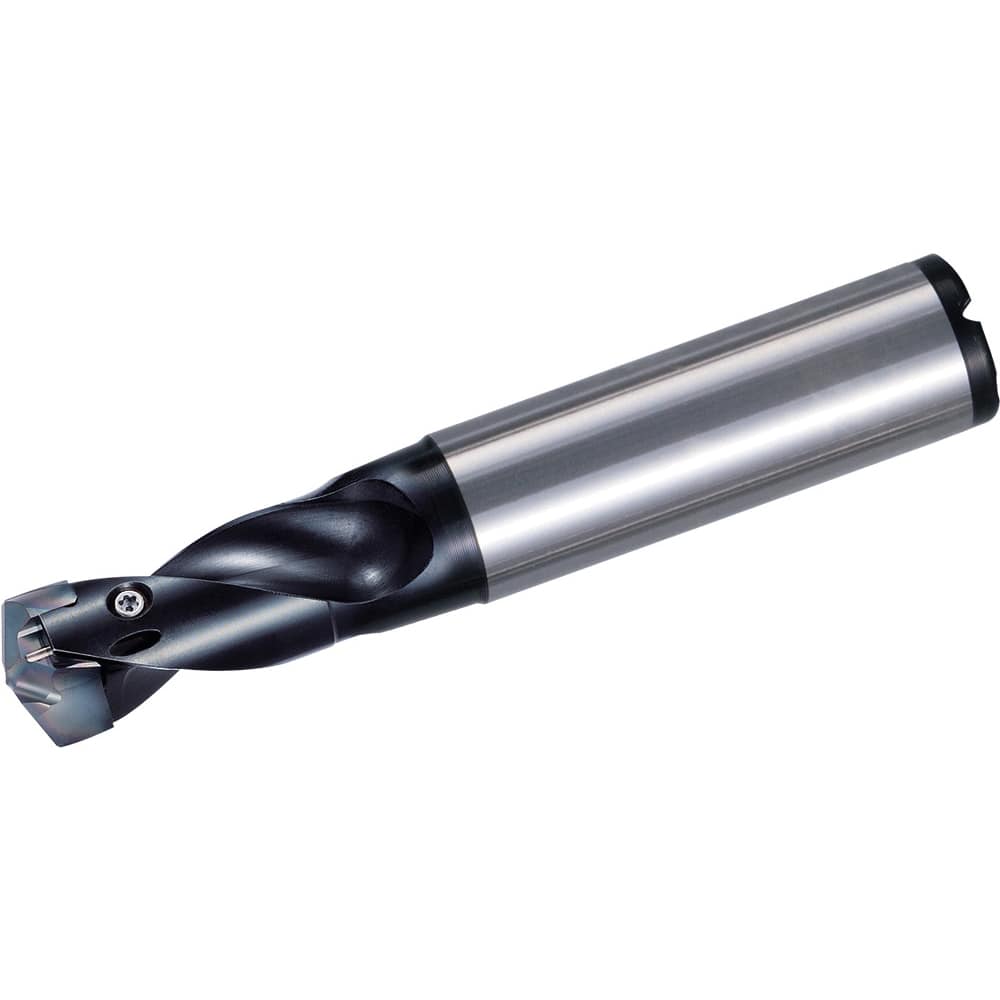

Kyocera - Replaceable-Tip Drills; Series: Magic Drill DRA ; Minimum Drill Diameter (mm): 16.00 ; Maximum Drill Diameter (mm): 16.99 ; Drill Depth by Diameter Ratio: 1.5xD ; Maximum Drill Depth (mm): 25.50 ; Shank Diameter (mm): 18.0000
Item #: 28522498
Brand: Kyocera
Model #: 8608365
Product Specifications
Replaceable-Tip Drills; Series: Magic Drill DRA ; Minimum Drill Diameter (mm): 16.00 ; Maximum Drill Diameter (mm): 16.99 ; Drill Depth by Diameter Ratio: 1.5xD ; Maximum Drill Depth (mm): 25.50 ; Shank Diameter (mm): 18.0000
| Series | Magic Drill DRA |
| Minimum Drill Diameter (mm) | 16.00 |
| Maximum Drill Diameter (mm) | 16.99 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 25.50 |
| Shank Diameter (mm) | 18.0000 |
| Insert Style | DA |
| Insert Seat Size | 080 |
| Toolholder Style | SS..DRA |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Flute Length (mm) | 25.50 |
| Overall Length (mm) | 98.5000 |
| Toolholder Material | Steel |
| Shank Length (mm) | 48.000 |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
