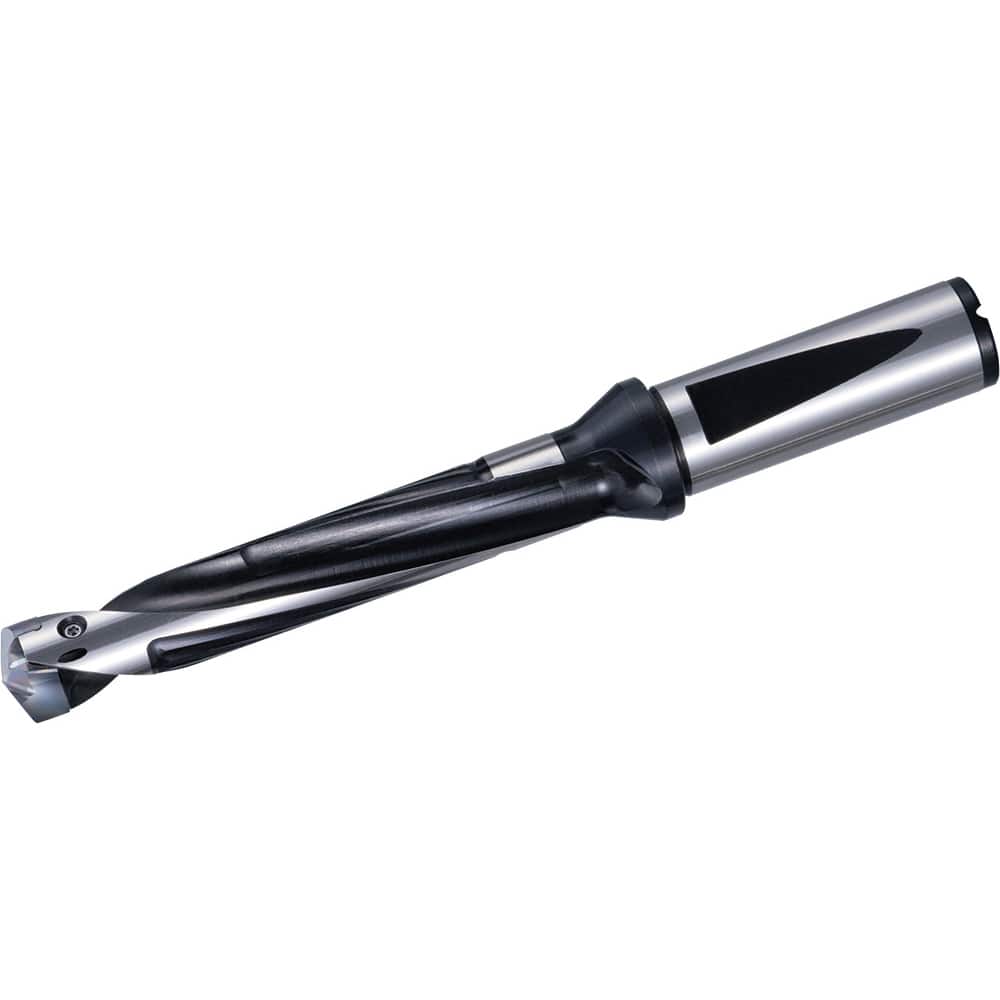

Kyocera - Replaceable-Tip Drills; Series: Magic Drill DRA ; Minimum Drill Diameter (mm): 11.50 ; Maximum Drill Diameter (mm): 11.99 ; Drill Depth by Diameter Ratio: 5xD ; Maximum Drill Depth (mm): 60.00 ; Shank Diameter (mm): 16.0000
Item #: 28522530
Brand: Kyocera
Model #: 8608216
Product Specifications
Replaceable-Tip Drills; Series: Magic Drill DRA ; Minimum Drill Diameter (mm): 11.50 ; Maximum Drill Diameter (mm): 11.99 ; Drill Depth by Diameter Ratio: 5xD ; Maximum Drill Depth (mm): 60.00 ; Shank Diameter (mm): 16.0000
| Series | Magic Drill DRA |
| Minimum Drill Diameter (mm) | 11.50 |
| Maximum Drill Diameter (mm) | 11.99 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 60.00 |
| Shank Diameter (mm) | 16.0000 |
| Insert Style | DA |
| Insert Seat Size | 080 |
| Toolholder Style | SF..DRA |
| Through Coolant | Through Coolant |
| Shank Type | Flange |
| Flute Length (mm) | 60.00 |
| Body Length (mm) | 78.000 |
| Overall Length (mm) | 126.0000 |
| Toolholder Material | Steel |
| Shank Length (mm) | 48.000 |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
