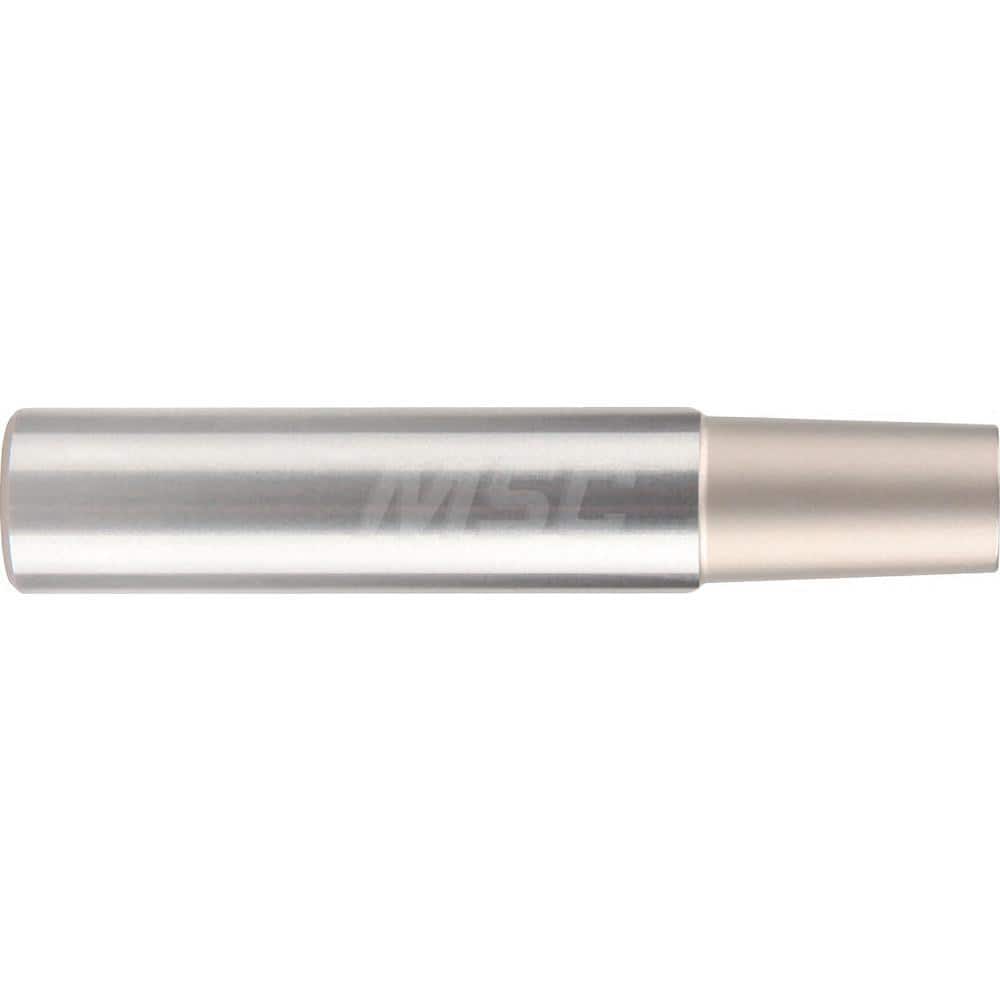

YG-1 - End Mill Holders & Adapters; Shank Type: Straight Shank ; Modular Connection Size: M8 ; Taper Size: None ; Hole Diameter (mm): 19.0500 ; Hole Diameter (Inch): 3/4 ; Nose Diameter (Inch): 3-35/64
Item #: 28653335
Brand: YG-1
Model #: ZMT040A048
Product Specifications
End Mill Holders & Adapters; Shank Type: Straight Shank ; Modular Connection Size: M8 ; Taper Size: None ; Hole Diameter (mm): 19.0500 ; Hole Diameter (Inch): 3/4 ; Nose Diameter (Inch): 3-35/64
| Shank Type | Straight Shank |
| Modular Connection Size | M8 |
| Taper Size | None |
| Hole Diameter (mm) | 19.0500 |
| Hole Diameter (Inch) | 3/4 |
| Nose Diameter (Inch) | 3-35/64 |
| Projection (Inch) | 5-29/32 |
| Through Coolant | Yes |
| Projection (Decimal Inch) | 5.9063 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Nose Diameter (Decimal Inch) | 0.5938 |
| Series/List | ZMT |
