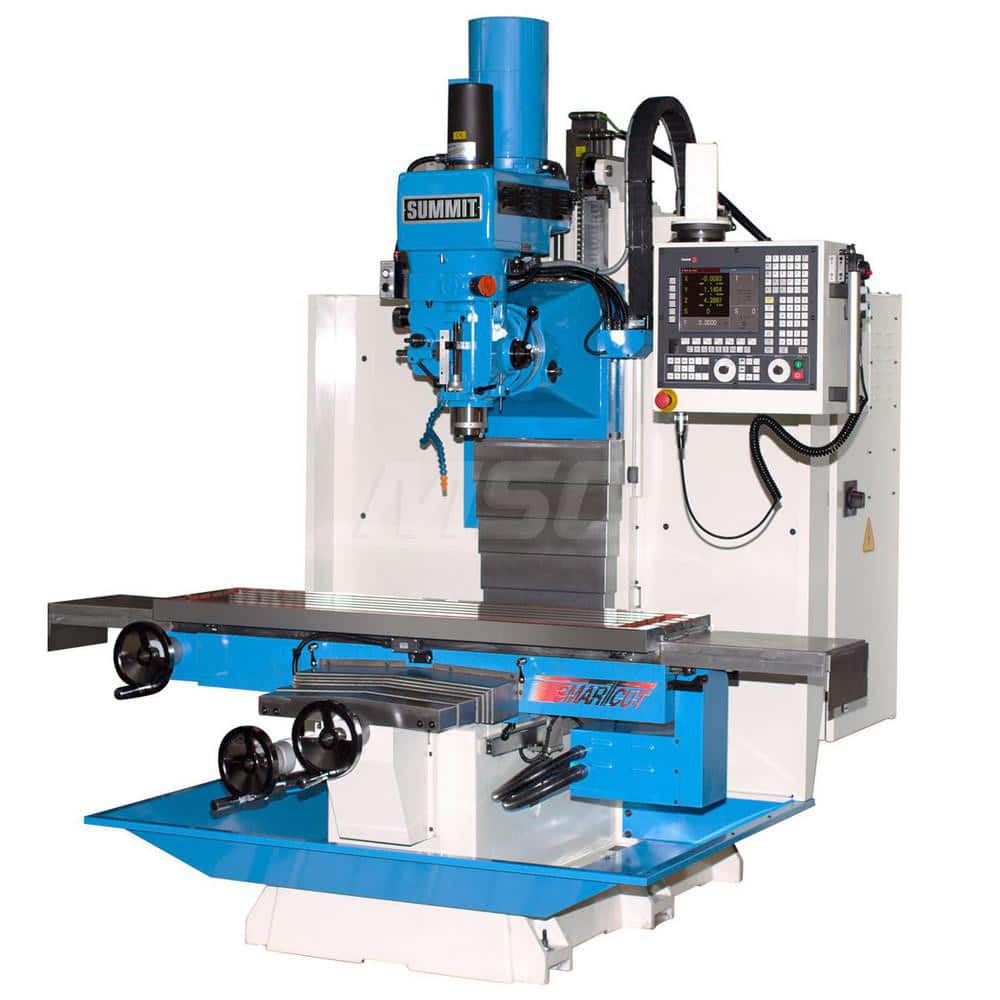

Summit - CNC Milling Machines; Spindle Speed Control: Electronic Variable Speed ; CNC Controller Brand: Fagor ; CNC Controller Model: 8055 CNC ; Table Length (Decimal Inch): 60.0000 ; Table Width (mm): 429.26 ; Table Width (Decimal Inch): 16.9000
Item #: 28710713
Brand: Summit
Model #: SMARTCUTEVS760B
Product Specifications
CNC Milling Machines; Spindle Speed Control: Electronic Variable Speed ; CNC Controller Brand: Fagor ; CNC Controller Model: 8055 CNC ; Table Length (Decimal Inch): 60.0000 ; Table Width (mm): 429.26 ; Table Width (Decimal Inch): 16.9000
| Spindle Speed Control | Electronic Variable Speed |
| CNC Controller Brand | Fagor |
| CNC Controller Model | 8055 CNC |
| Table Length (Decimal Inch) | 60.0000 |
| Table Width (mm) | 429.26 |
| Table Width (Decimal Inch) | 16.9000 |
| Phase | 3 |
| Longitudinal Travel (Inch) | 51.1 |
| Cross Travel (Decimal Inch) | 23.6200 |
| Maximum Spindle Speed (RPM) | 3800.00 |
| Minimum Spindle Speed (RPM) | 70.00 |
| Spindle Taper Size | #40 |
| Table Load Capacity (Lb.) | 2200.00 |
| Horsepower (HP) | 7-1/2 |
| Voltage | 220 |
