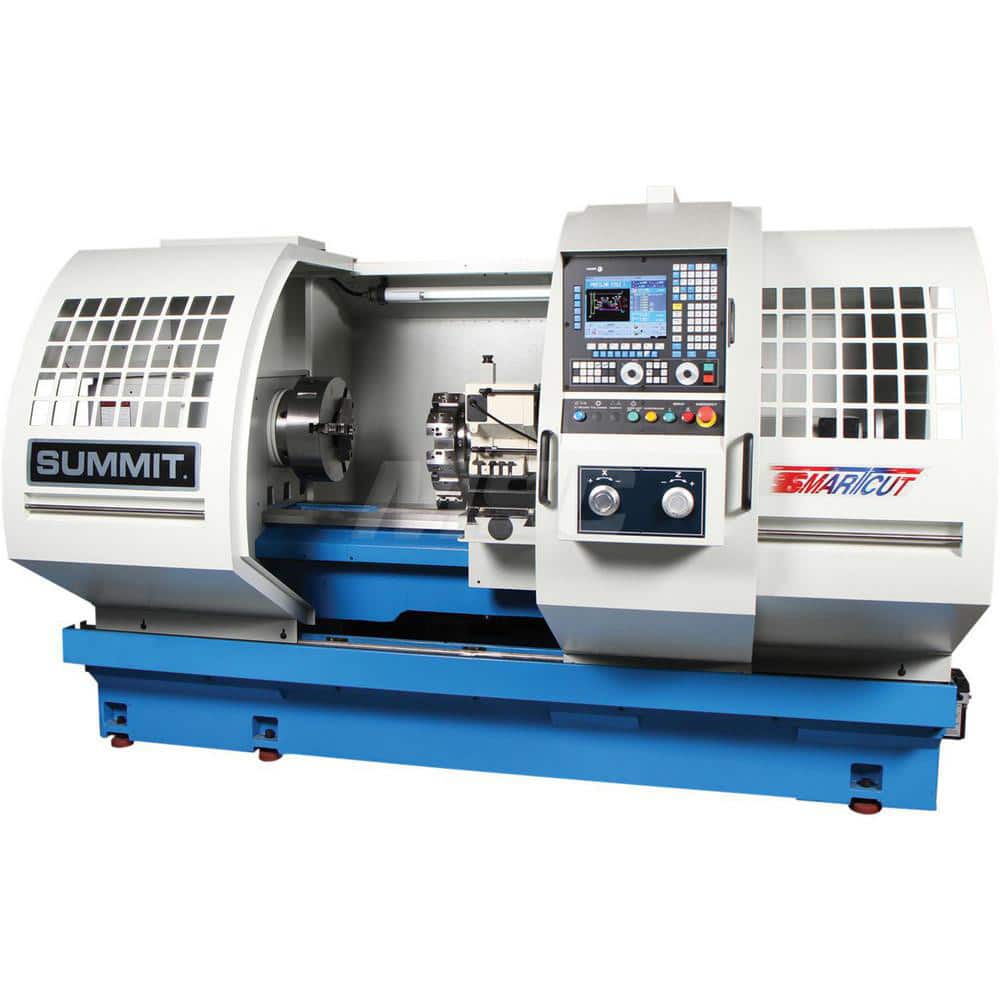

Summit - CNC Lathes; Precision: No ; Swing (Inch): 20 ; Swing (Decimal Inch): 20.0000 ; Swing (mm): 20.00 ; Swing Over Cross Slide (Decimal Inch): 11.5000 ; Swing Over Cross Slide (mm): 11.50
Item #: 28710853
Brand: Summit
Model #: SC20-3X53
Product Specifications
CNC Lathes; Precision: No ; Swing (Inch): 20 ; Swing (Decimal Inch): 20.0000 ; Swing (mm): 20.00 ; Swing Over Cross Slide (Decimal Inch): 11.5000 ; Swing Over Cross Slide (mm): 11.50
| Precision | No |
| Swing (Inch) | 20 |
| Swing (Decimal Inch) | 20.0000 |
| Swing (mm) | 20.00 |
| Swing Over Cross Slide (Decimal Inch) | 11.5000 |
| Swing Over Cross Slide (mm) | 11.50 |
| Swing Over Gap (Inch) | 28 |
| Distance Between Centers (mm) | 52.00 |
| Distance Between Centers (Inch) | 52 |
| Distance Between Centers (Decimal Inch) | 52.0000 |
| Bed Width (mm) | 330.00 |
| Bed Width (Inch) | 13 |
| Bed Width (Decimal Inch) | 13.0000 |
| Headstock Taper Size | 7MT |
| Tailstock Taper Size | 5MT |
| Spindle Bore Diameter (mm) | 85.00 |
| Spindle Bore Diameter (Decimal Inch) | 3.3120 |
| Gap Length (Inch) | 15.3 |
| Controller | Fagor 855TC |
| Cross Slide Travel Length (Decimal Inch) | 21.6000 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch) | 0.0000 |
| Maximum Cross Feed Rate Per Revolution (m/min) | 250.00 |
| Max. Longitudinal Feed Rate Per Rev. (in/min) | 400.0000 |
| Overall Length (Inch) | 240 |
| Overall Height (Inch) | 88 |
| Maximum RPM | 400 |
| Minimum RPM | 4.00 |
| Horsepower (HP) | 30 |
| Phase | 3 |
| Voltage | 230 V |
