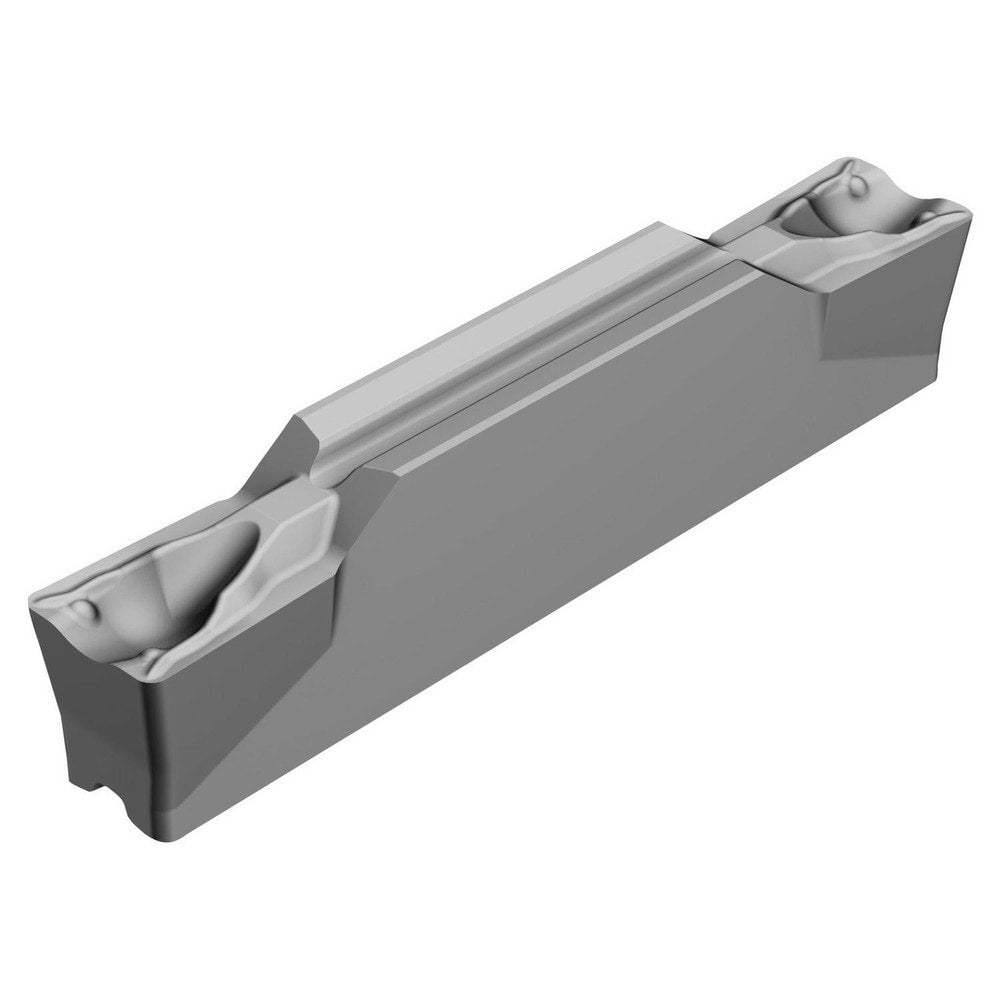

Grooving Insert: C2I L2 TF, 5015, Cermet
Item #: 77287795
Brand: Sandvik Coromant
Model #: 8194391
Product Specifications
| Insert Style | C2I |
| Insert Size Code | L |
| Cutting Width (Decimal Inch) | 0.3150 |
| Cutting Width (mm) | 8.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 4.00 |
| Insert Material | Cermet |
| Manufacturer Grade | 5015 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.8 |
| Number Of Cutting Edges | 2 |
| Rake | Neutral |
| Measurement Type | Metric |
| Face Grooving | Yes |
| Insert Holding Method | Clamp |
| Insert Size | L2 |
| Cutting Height (mm) | 28.45 |
| Cutting Height (Decimal Inch) | 1.1201 |
| Lead Angle | 0.000 |
| Multi-use Tool | Yes |
| Series | C2I |
| Coating Process | Uncoated |
| Rake Angle | 33.000 |
| Overall Length (Decimal Inch) | 1.1802 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | C2I-L2N-0800-0008-TF5015 |
| Iso Code | C2I-L2N-0800-0008-TF5015 |
| Manufacturers Catalog Number | C2I-L2N-0800-0008-TF5015 |
| UNSPSC Code | 23242105 |
| Chip Breaker | TF |
| Insert Seat Size | 8 |
| Overall Width (mm) | 8.0000 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.315 |
| Coating/Finish | Uncoated |
| For Use With | Indexable Grooving Toolholders |
| Country of Origin | Sweden |
