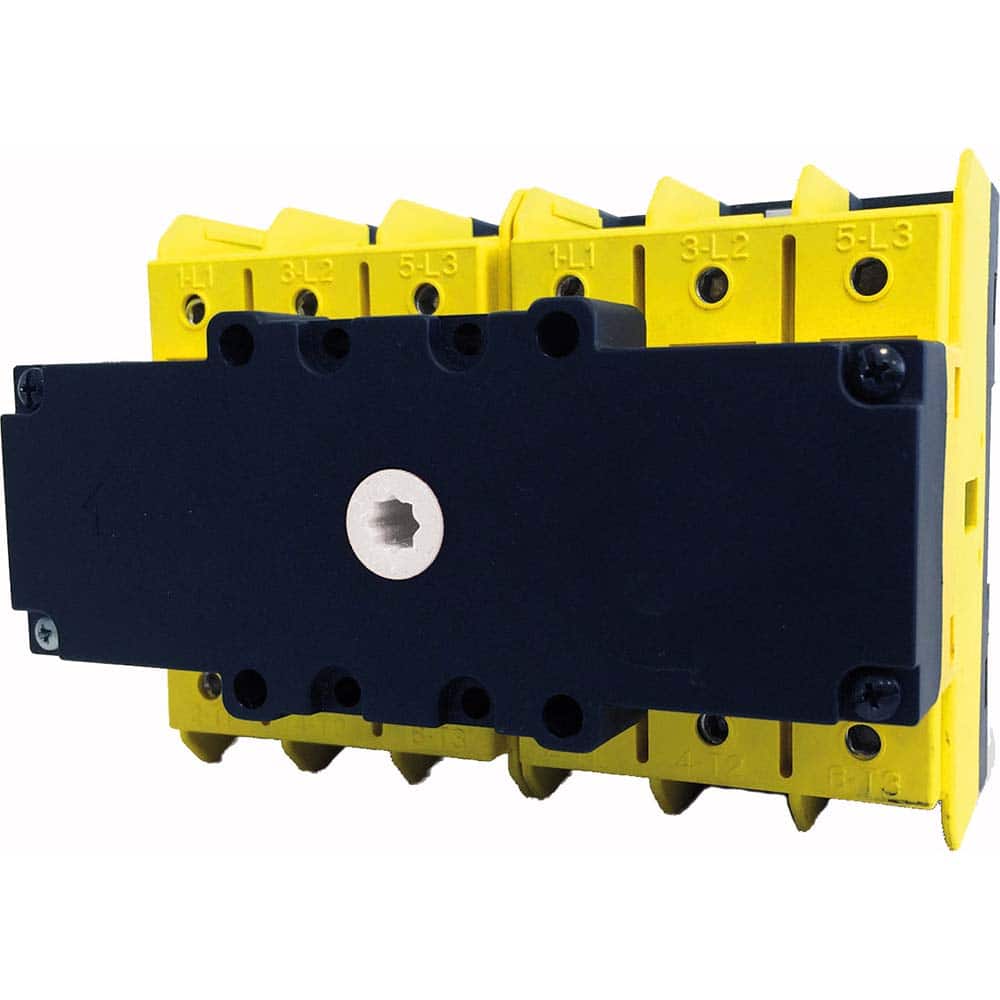

Automation Systems Interconnect - Cam & Disconnect Switches; Enclosure Type: Open ; Fused: NonFused ; Amperage: 150 ; Contact Form: 3PST ; Voltage: 600 VAC ; Horsepower at 1 Phase: 25 @ 230 VAC
Item #: 28743011
Brand: Automation Systems Interconnect
Model #: SQN160033B
Product Specifications
Cam & Disconnect Switches; Enclosure Type: Open ; Fused: NonFused ; Amperage: 150 ; Contact Form: 3PST ; Voltage: 600 VAC ; Horsepower at 1 Phase: 25 @ 230 VAC
| Enclosure Type | Open |
| Fused | NonFused |
| Amperage | 150 |
| Contact Form | 3PST |
| Voltage | 600 VAC |
| Horsepower at 1 Phase | 25 @ 230 VAC |
| Horsepower at 3 Phase | 60 @ 600 VAC |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Overall Depth (mm) | 110.00 |
| Overall Depth (Decimal Inch) | 5.39 |
| Overall Height (mm) | 100 |
| Overall Height (Inch) | 3.9370 |
| Overall Height (Decimal Inch) | 3.9370 |
| Overall Width (mm) | 135.00 |
| Overall Width (Decimal Inch) | 5.41 |
| Standards Met | UL 508; cUL Listed |
| Amperage Rating | 150.0000 |
