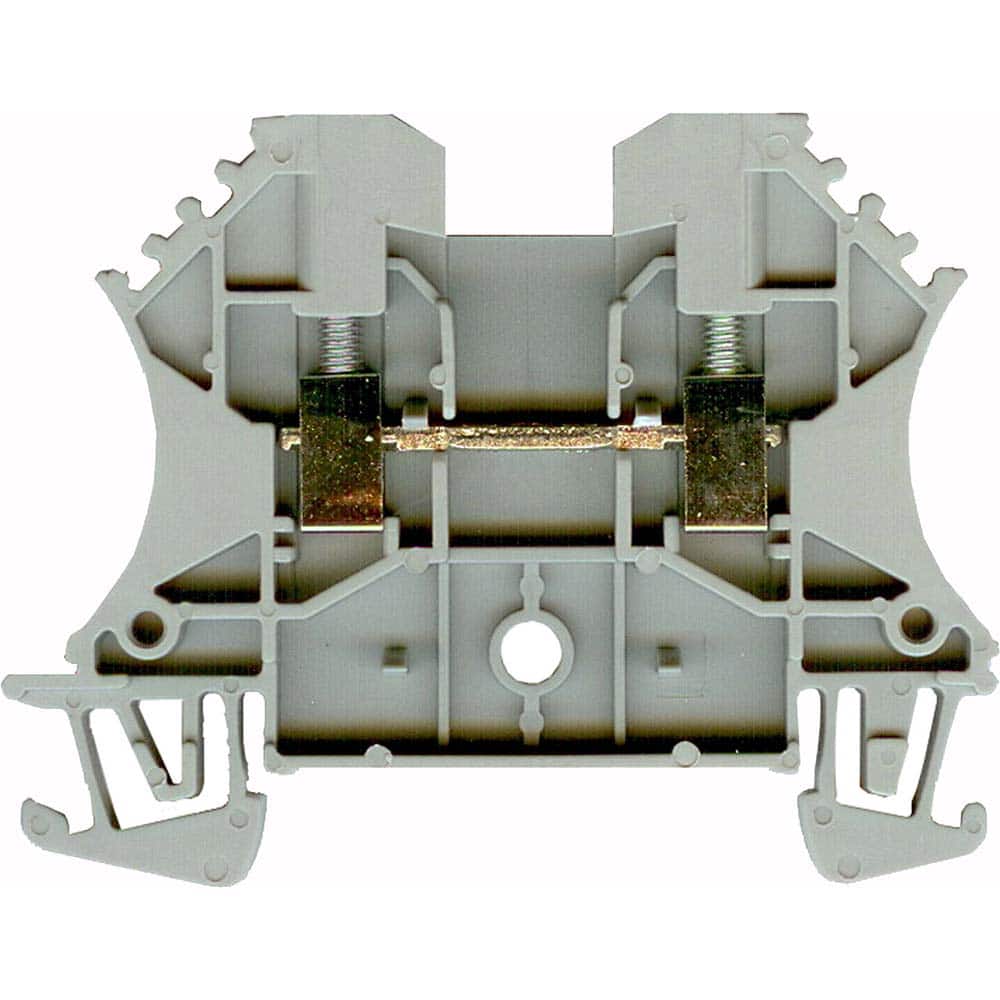

Automation Systems Interconnect - Terminal Blocks; Block Type: General Purpose ; Mounting Type: DIN Rail ; Voltage: 600 ; Amperage: 25 ; Number of Contacts: 2 ; Number of Poles: 2
Item #: 28744035
Brand: Automation Systems Interconnect
Model #: ASI1492J3
Product Specifications
Terminal Blocks; Block Type: General Purpose ; Mounting Type: DIN Rail ; Voltage: 600 ; Amperage: 25 ; Number of Contacts: 2 ; Number of Poles: 2
| Block Type | General Purpose |
| Mounting Type | DIN Rail |
| Voltage | 600 |
| Amperage | 25 |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Number of Rows | 1 |
| Maximum Compatible Wire Size (AWG) | 12 |
| Maximum Compatible Wire Size (sq mm) | 4 |
| Minimum Compatible Wire Size (AWG) | 28 |
| Minimum Compatible Wire Size (sq mm) | .08 |
| Contact Material | Copper Alloy |
| Block Material | Plastic |
| Block Color | Gray |
| Overall Height (mm) | 60 |
| Overall Depth (mm) | 46 |
| Overall Length (mm) | 46 |
| Overall Width (mm) | 5 |
| Standards Met | UL |
