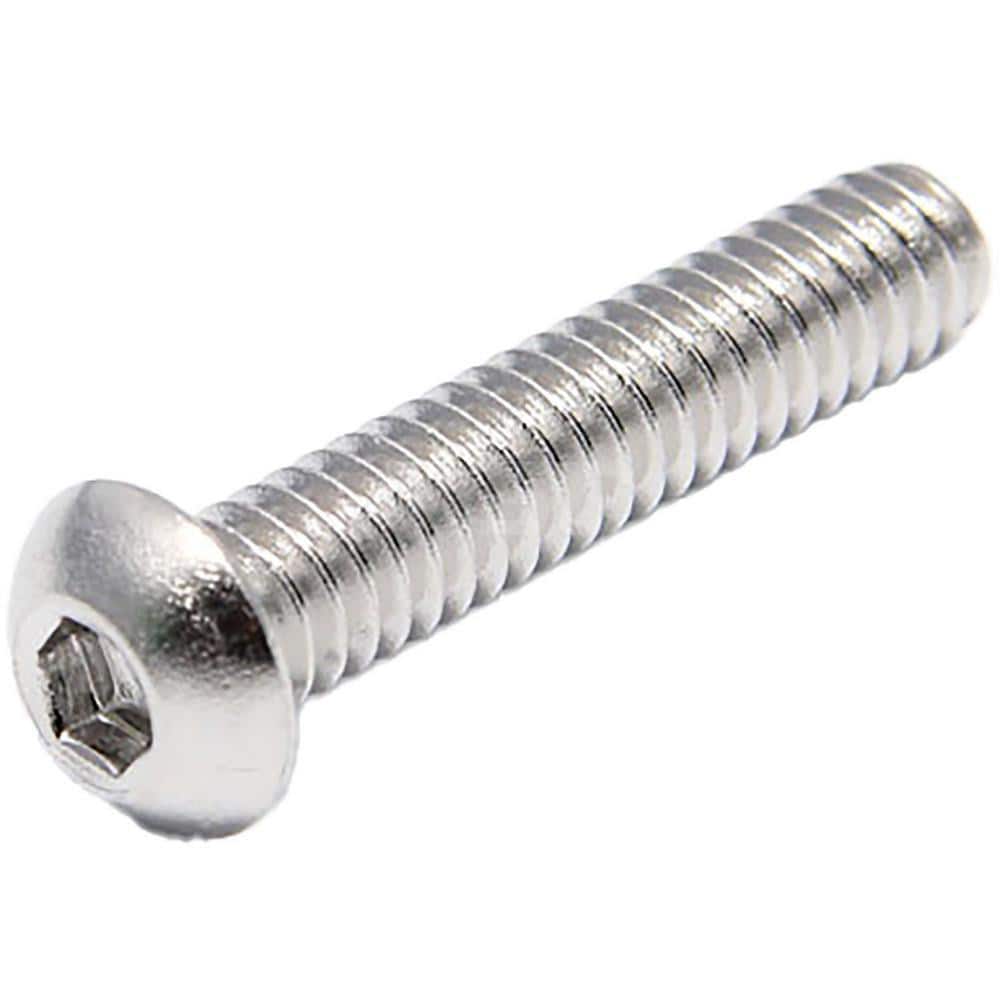

Socket Cap Screw: Stainless Steel, NL-19 Finish Fully Threaded, DIN 7380
Item #: 29030566
Brand: Foreverbolt
Model #: MBHCS137-66
Product Specifications
| Head Type | Button |
| Drive Type | Socket |
| Drive Size | 4 mm |
| Drive Size (mm) | 4.00 |
| Thread Size (mm) | M5 x 0.08 |
| Thread Standard | DIN 7380 |
| Finish Coating | NL-19 |
| Thread Style | Fully Threaded |
| Material | Stainless Steel |
| Thread Direction | Right Hand |
| Full or Partial Threading | Fully Threaded |
| Thread Spacing | Coarse |
| Thread Fit Class | 2A |
| Head Diameter (Decimal Inch) | 9.5000 |
| Head Diameter (Inch) | 9-1/2 |
| Hardness | Rockwell B100 |
| Head Height | 2.7500 |
| Fastener Standard | DIN 7380 |
| Material Grade | 18-8 |
| Length Under Head (mm) | 16.00 |
